Note: check building layouts page to find instructions and guidance about how to create and post new layouts

Production layouts are sorted based on the regions which they can be built in. Layouts within each population tier are in alphabetical order.

Mixed layouts include production of several goods from the particular tier.

Mixed tiers layouts include production of several goods from various tiers (at least two different tiers).

Please calculate size/tiles only using needed roads, so no border roads if not necessary.

The title contains special abbreviations if the layout contains special buildings like: warehouses - WH, trade unions - TU, fire stations - FS, oil power plants - PP, silos or tractors from Bright Harvest DLC - BH. Please use a title simply as "Goods ## WH TU FS PP BH - x", where Goods is the name of produced good, ## is the consecutive number of the layout, x is your own addition to the title of the layout, for example: "Schnapps 01 WH FS" means that the layout is the first one for schnapps production and it contains both warehouses and fire stations.

General

Timber

Timber 01 WH


Layout for Timber with 4 Lumberjack's Hut at 100% efficiency.

Original design from MrStainless001/

(https://youtu.be/9H4lGRRumiQ)

Buildings: 4 Timber.png • 4 Wood.png • 1 Warehouse.png
Construction costs: 1300 Credits.png • 10 Timber.png
Maintenance: -100 Balance.png • -60 Workforce - farmers.png • -60 Workforce - jornaleros.png
Size: 28x32 Tiles: 784Tile.png Space Efficiency:
Production (per minute): 32 Wood.png• 32 Timber.png
Author:  Tempoback • Source: https://youtu.be/9H4lGRRumiQ


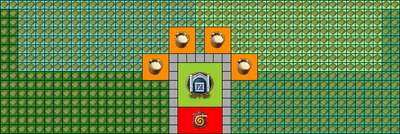

Timber 02 WH


Layout for Timber with 4 Lumberjacks's Huts at 100% efficiency. Can first be used with 2 LJ-Huts and later be upgraded to 4.

Buildings: 4 Wood.png • 4 Timber.png • 1 Warehouse.png
Construction costs: 1300 Credits.png • 10 Timber.png
Maintenance: -100 Balance.png • -60 Workforce - farmers.png
Size: 35x35 Tiles: 1225Tile.png Space Efficiency:
Production (per minute): 32 Wood.png• 32 Timber.png
Author:  Fastchiller & SightZyra • Source: https://www.youtube.com/watch?v=6KFUrzTMFXk&list=PLloFI03sBrvSzWGUPQ1drt2XoAB5LVUyp&index=4


Timber 03 WH TU FS - Late Game

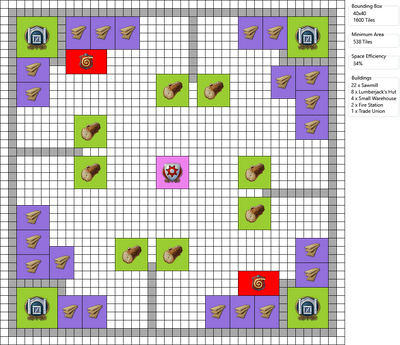

Timber Layout NH.png

Late Game Timber layout requires trade union with Ursula Green, Vincent Drag Saw and Teutonic Technical Secateurs

Buildings: 8 Wood.png • 22 Timber.png • 4 Warehouse.png • 2 Fire station.png • 1 Trade Union.png
Construction costs:
Maintenance:
Size: 40x40 Tiles: 1600Tile.png Space Efficiency: 34%
Production (per minute): 76.8 Timber.png
Author:  nhavers5 • Source: nhavers5


Timber 04 WH TU FS

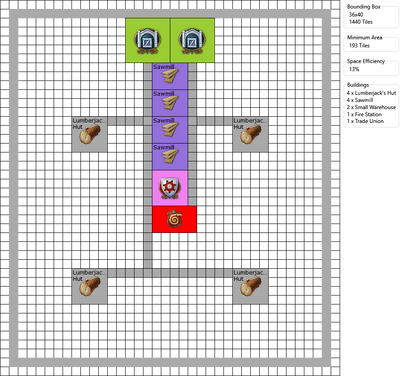

Timber 04 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Timber 05 WH TU

Layout Timber 05 WH TU.png

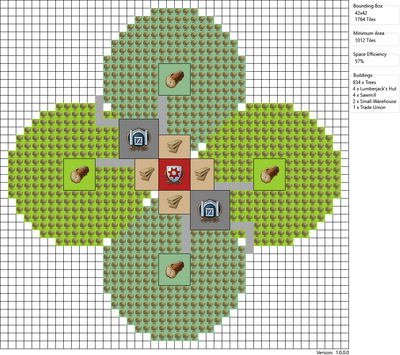

A good looking clover layout for early game timber, ready to be boosted via trade union. It's pretty compact, you can place roads along the edge to mark the no-construction zone. Later, you can shrink down the 4 huts when you have forest density item in your TU.

Buildings: 4 Wood.png • 4 Timber.png • 2 Warehouse.png • 1 Trade Union.png
Construction costs: 4300 Credits.png • 45 Timber.png • 5 Bricks.png
Maintenance: -170 Balance.png • -60 Workforce - farmers.png • -60 Workforce - jornaleros.png • -20 Influence.png
Size: 42x42 Tiles: 1012Tile.png Space Efficiency: 57%
Production (per minute): 16 Wood.png• 16 Timber.png
Author:  S0unk • Source:


Old World

Farmers tier layouts

Schnapps

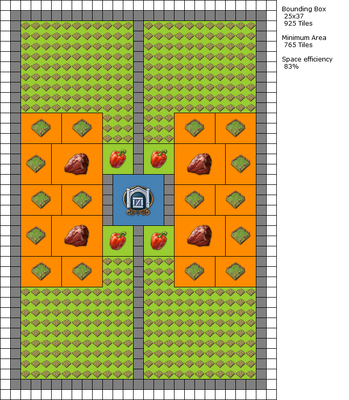

Schnapps 01 WH

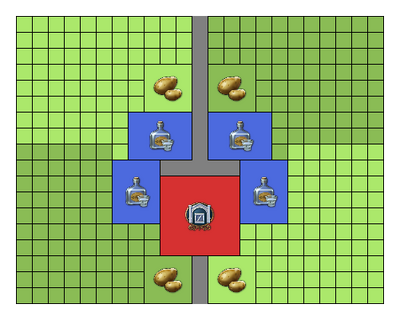

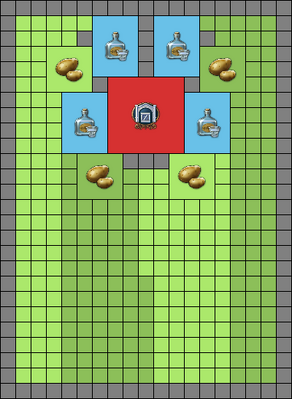

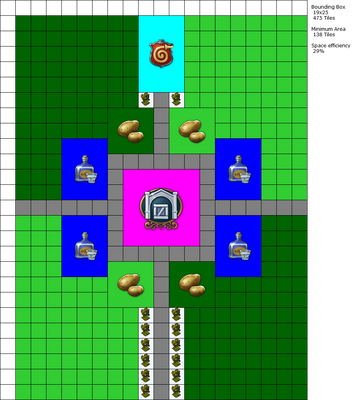

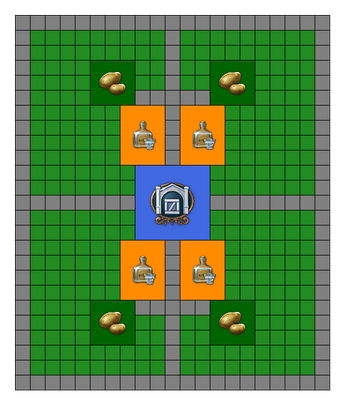

Schnapps Layout.png

A full production chain for Schnapps, needs Medium Warehouse

Buildings: 1 Warehouse.png • 4 Potato.png • 4 Schnapps.png • 288 Farm module.png
Construction costs: 1300 Credits.png • 26 Timber.png
Maintenance: -260 Balance.png • -280 Workforce - farmers.png
Size: 17 x 24 (no roads) Tiles: 408Tile.png Space Efficiency: 97.30%
Production (per minute): 8 Schnapps.png
AuthorMadaahkSource: Reddit


Schnapps 02 WH


A full production chain for Schnapps, needs Medium Warehouse

Buildings: 1 Warehouse.png • 4 Potato.png • 4 Schnapps.png • 288 Farm module.png
Construction costs: 1300 Credits.png • 26 Timber.png
Maintenance: -260 Balance.png • -280 Workforce - farmers.png
Size: 23 x 18 Tiles: 414Tile.png Space Efficiency: 95.89%
Production (per minute): 8 Schnapps.png
AuthorSnoopadelicxSource:


Schnapps 03 WH


A full production chain for Schnapps

Buildings: 1 Warehouse.png • 2 Potato.png • 2 Schnapps.png • 144 Farm module.png
Construction costs: 900 Credits.png • 18 Timber.png
Maintenance: -140 Balance.png • -140 Workforce - farmers.png
Size: 17 x 14 Tiles: 238Tile.png Space Efficiency: 88.66%
Production (per minute): 4 Schnapps.png
AuthorSnoopadelicxSource:


Schnapps 04 WH FS

Schnapps Layout Yuzhou.png

A full production chain for Schnapps with a fire station.

Buildings: 1 Warehouse.png • 4 Potato.png • 4 Schnapps.png • 288 Farm module.png • 1 Fire station.png
Construction costs: 1800 Credits.png • 30 Timber.png
Maintenance: -285 Balance.png • -280 Workforce - farmers.png
Size: 23 x 19 Tiles: 437Tile.png Space Efficiency: 94.28%
Production (per minute): 8 Schnapps.png
AuthorYuzhouwangSource:


Schnapps 05 WH


Full production chain for Schnapps

Buildings: 1 Warehouse.png • 4 Potato.png • 4 Schnapps.png • 288 Farm module.png
Construction costs: 1300 Credits.png • 26 Timber.png
Maintenance: -260 Balance.png • -280 Workforce - farmers.png
Size: 23 x 19 (no roads) Tiles: 437Tile.png Space Efficiency: 90.85%
Production (per minute): 8 Schnapps.png
AuthorKhypsOSSource: Twitch KhypsOS


Schnapps 06 WH

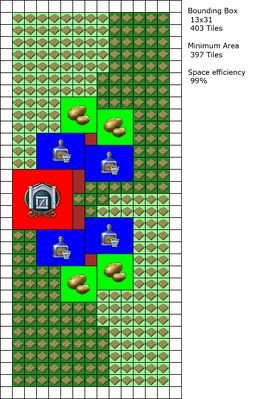

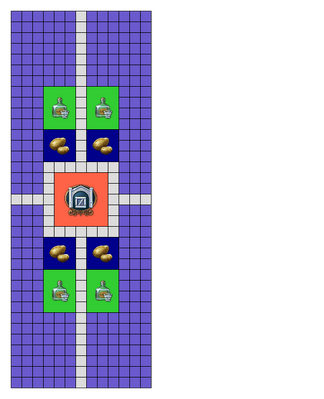

Potato farm.png

Full production chain for Schnapps

Buildings: 1 Warehouse.png • 4 Potato.png • 4 Schnapps.png • 255 Farm module.png
Construction costs: 1300 Credits.png • 26 Timber.png
Maintenance: -260 Balance.png • -280 Workforce - farmers.png
Size: 13 x 35 Tiles: 455Tile.png Space Efficiency: 86.59%
Production (per minute): 8 Schnapps.png
AuthorEntropic8Source:


Schnapps 07 WH

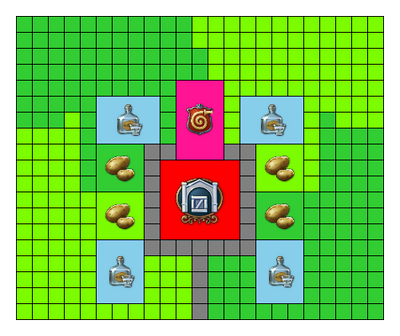

Schnapps layout 07.png

A full production chain for Schnapps, needs Medium Warehouse. Minimal size but no access for a fire brigade in case of a fire.

Buildings: 1 Warehouse.png • 4 Potato.png • 4 Schnapps.png • 288 Farm module.png
Construction costs: 1300 Credits.png • 26 Timber.png
Maintenance: -260 Balance.png • -280 Workforce - farmers.png
Size: 13 x 31 Tiles: 403Tile.png Space Efficiency: 98.51%
Production (per minute): 8 Schnapps.png
Authorjco0000Source:


Schnapps 08 WH FS

Schnapps with fire station.png

Full production chain for Schnapps with fire station and some ornaments. Can be used with all my other layouts. Should serve 2400 farmers / workers

Buildings: 1 Warehouse.png • 1 Fire station.png • 4 Schnapps.png • 4 Potato.png • 288 Farm module.png
Construction costs: 1800 Credits.png • 30 Timber.png
Maintenance: -285 Balance.png • -280 Workforce - farmers.png
Size: 19x25 Tiles: 475Tile.png Space Efficiency: 86.74%
Production (per minute): 8 Schnapps.png
AuthorSyrathusSource:


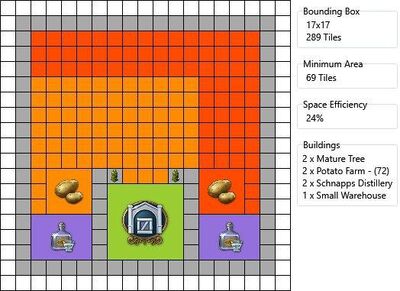

Schnapps 09 WH


Full production chain for Schnapps. Can easyly be dupicated to 4 Schanpps production chains.

Buildings: 2 Potato.png • 2 Schnapps.png • 1 Warehouse.png • 2 Fully Grown Tree.png • Mature Tree
Construction costs: 900 Credits.png • 18 Timber.png
Maintenance: -140 Balance.png • -140 Workforce - farmers.png
Size: 17x17 Tiles: 289Tile.png Space Efficiency: 95.16%
Production (per minute): 4 Schnapps.png
Author:  Fastchiller & SightZyra • Source: https://www.youtube.com/watch?v=bXEqlcHYxbo&list=PLloFI03sBrvSzWGUPQ1drt2XoAB5LVUyp&index=2


Schnapps 10 WH FS TU

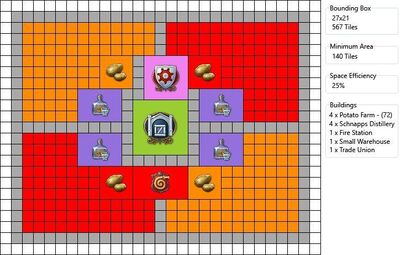

Schnapps TU FS WH.jpg

Full production chan for Schnapps with firestation and traideunion included.

Buildings: 4 Potato.png • 4 Schnapps.png • 1 Warehouse.png • 1 Fire station.png • 1 Trade Union.png
Construction costs: 4300 Credits.png • 55 Timber.png • 5 Bricks.png
Maintenance: -335 Balance.png • -280 Workforce - farmers.png
Size: 27x21 Tiles: 567Tile.png Space Efficiency:
Production (per minute): 8 Schnapps.png
Author:  Fastchiller & SightZyra • Source: https://www.youtube.com/watch?v=bXEqlcHYxbo&list=PLloFI03sBrvSzWGUPQ1drt2XoAB5LVUyp&index=2


Schnapps 11 WH BH

Potato Farm with Tractor Barn.jpg

More info for this build.

Later you can add a Tractor Barn. This is the total cost for all 4 Tractor Barns. 20.000 Credits, 80 Steel beams, 40 Steam motors. You will get. -50% workforce required, +50% no. of modules

If you added the Tractor barn you can add the red marked fields to you Potato Farms you will get a total of 432 modules. And you need -40 less Workforce(farmers).

Schnapps Distillery with Electricity:

With Electricity the Distillery needs 4 Potato/min instead of 2 Potato/min

With Electricity the Distillery outpouts 4 Schnapps/min instead of 2 Schnapps/min

You need 900 Credits for 12 Apple Tree.

Later you need to upgrade the Small Warehouse to a Medium Warehouse. This will cost you:

2500 Credits, 20 Timber, 20 Bricks

Buildings: 1 Warehouse.png • 4 Potato.png • 4 TractorBarn.png • 4 Schnapps.png • 288 (432) Farm module.png • 12 AppleTree.png
Construction costs: 1.588 (23.544) Credits.png • 26 (20) Timber.png • (20) Bricks.png • (80) Steel beams.png
Maintenance: - 260 Balance.png • - 280 (-220) Workforce - farmers.png
Size: Tiles: 729Tile.png Space Efficiency: 79
Author:  HopHopDicht • Source: My Brain and the basic from KhypsOS


Schnapps 12 WH TU FS

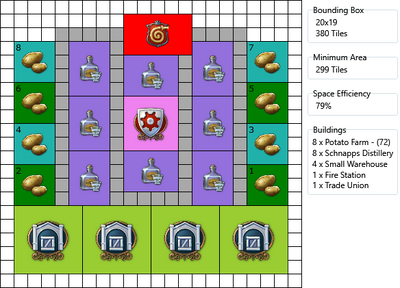

Schnapps 12 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Schnapps 13 WH TU FS BH

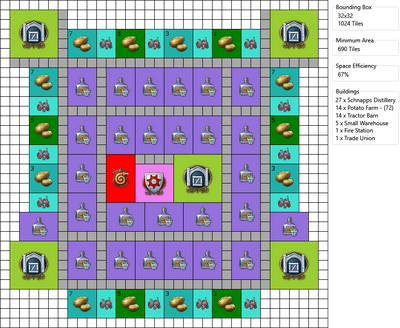

Schnapps 13 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Wool

Wool 01

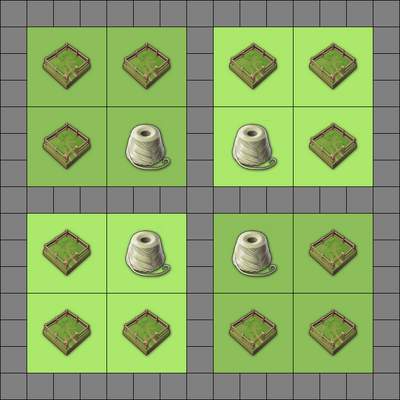

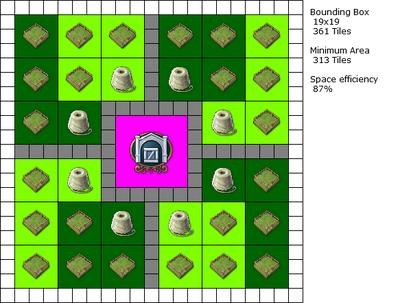

Wool Layout.png

This is a typical 4 Sheep Farm setup which ideally can be used in a 15x15 tile set-up

Buildings: 4 Wool.png • 12 Farm module.png
Construction costs: 400 Credits.png • 8 Timber.png
Maintenance: -80 Balance.png • -40 Workforce - farmers.png
Size: 13 x 13 (no roads) Tiles: 169Tile.png Space Efficiency:
Production (per minute): 8 Wool.png
AuthorKartographerSource:

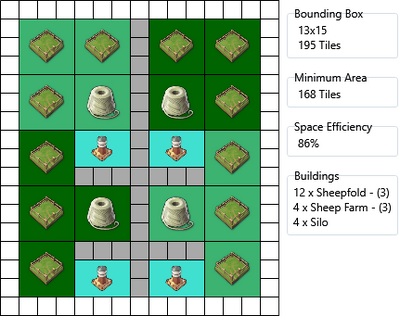

Wool 02 BH


Small in size big in production

Buildings: 4 Sheep Farm.png • 4 Silo.png
Construction costs: -4400 Credits.png • 72 Timber.png • 40 Bricks.png
Maintenance: -80 Balance.png • -40 Workforce - farmers.png
Size: 13x15 Tiles: 168Tile.png Space Efficiency:
Production (per minute): 16 Wool.png
Author:  NotBogan • Source:


Wool 02 WH


massive production of wool with relative low size. Can be combined with my other layouts

Buildings: 1 Warehouse.png • 8 Wool.png • 24 Farm module.png
Construction costs: 1300 Credits.png • 26 Timber.png
Maintenance: -180 Balance.png • -80 Workforce - farmers.png
Size: 19x19 Tiles: 361Tile.png Space Efficiency:
Production (per minute): 16 Wool.png
AuthorSyrathusSource:


Work Clothes

Work Clothes 01 WH

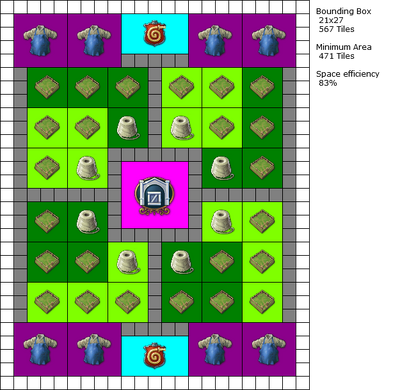

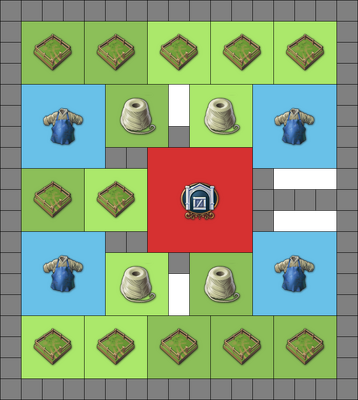

Sheep Farm II.png

A full production chain for work clothes, needs Medium Warehouse

Buildings: 1 Warehouse.png • 4 Work clothes.png • 4 Wool.png • 12 Farm module.png
Construction costs: 1300 Credits.png • 26 Timber.png
Maintenance: -360 Balance.png • -240 Workforce - farmers.png
Size: 15 x 17 (no roads) Tiles: 255Tile.png Space Efficiency:
Production (per minute): 8 Work clothes.png
AuthorMadaahkSource: Reddit


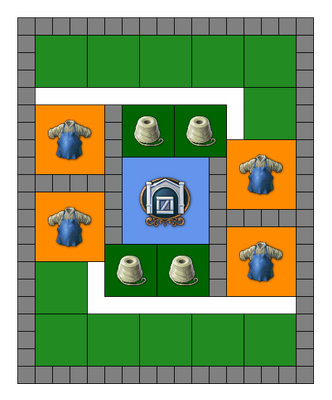

Work Clothes 02 WH


A full production chain for work clothes

Buildings: 1 Warehouse.png • 4 Work clothes.png • 4 Wool.png • 12 Farm module.png
Construction costs: 1300 Credits.png • 26 Timber.png
Maintenance: -360 Balance.png • -240 Workforce - farmers.png
Size: 15 x 19 (no roads) Tiles: 285Tile.png Space Efficiency:
Production (per minute): 8 Work clothes.png
AuthorKhypsOSSource: Twitch KhypsOS


Work Clothes 03 WH FS

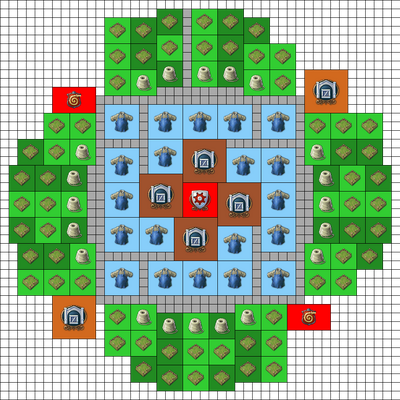

Massive production of clothes. Can be combined with other layouts of me. Just use upper or lower half when combining. Seems too much? Just build this on one of your low tier islands and deliver clothes all others

Buildings: 1 Warehouse.png • 2 Fire station.png • 8 Work clothes.png • 8 Wool.png • 24 Farm module.png
Construction costs: 3100 Credits.png • 50 Timber.png
Maintenance: -630 Balance.png • -480 Workforce - farmers.png
Size: 21x27 Tiles: 567Tile.png Space Efficiency:
Production (per minute): 16 Work clothes.png
AuthorSyrathusSource:

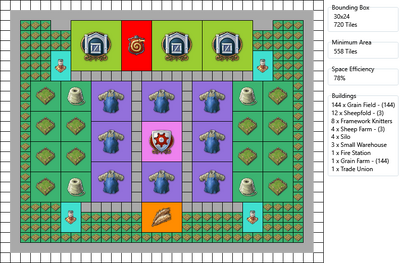

Work Clothes 04 WH TU FS

Sheep cloth.png

A full production chain of Work clothes on a production island. Warehouse needs to be fully upgraded. *Warehouses on the top right und bottom left corner are optional.

Buildings: 1 Trade Union.png • 2 Fire station.png • 4(6*) Warehouse.png • 20 Wool.png • 20 Work clothes.png • 60 Farm module.png
Construction costs: 26400(32400) Credits.png • 233(293) Timber.png • 85(125) Bricks.png
Maintenance: -1570 Balance.png • -1200 Workforce - farmers.png • 20 Influence.png
Size: 44x44 Tiles: 1936Tile.png Space Efficiency:
Production (per minute): 40 Work clothes.png
AuthorShiyodaSource:


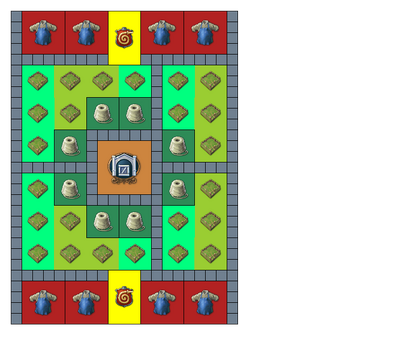

Work Clothes 05 FS


Layout inspired by Syrathus but modified to be more space-efficient and make it easier to place several modules of this layout next to each other or to other modules.

Buildings: 1 Warehouse.png • 2 Fire station.png • 8 Work clothes.png • 8 Wool.png • 24 Farm module.png
Construction costs: 3100 Credits.png • 50 Timber.png
Maintenance: -630 Balance.png • -480 Workforce - farmers.png
Size: 21x29 Tiles: 609Tile.png Space Efficiency: 42%
Production (per minute): 16 Work clothes.png
AuthorEntropic8Source:


Work Clothes 06 WH

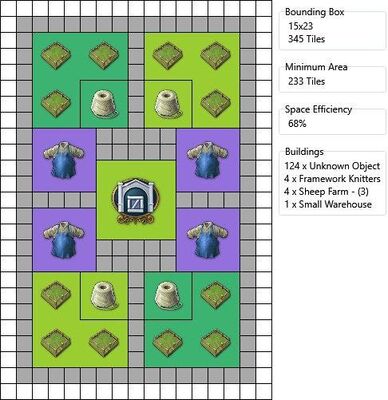

Cloaths WH.jpg

A full production chain for work clothes

Buildings: 4 Work Clothes.png • 4 Wool.png • 1 Warehouse.png
Construction costs: 1300 Credits.png • 26 Timber.png
Maintenance: -300 Balance.png • -240 Workforce - farmers.png
Size: 15x23 Tiles: 345Tile.png Space Efficiency:
Production (per minute): 8 Work clothes.png
Author:  Fastchiller & SightZyra • Source: https://www.youtube.com/watch?v=BGVjFE6o6pQ&list=PLloFI03sBrvSzWGUPQ1drt2XoAB5LVUyp&index=3


Work Clothes 07 WH TU

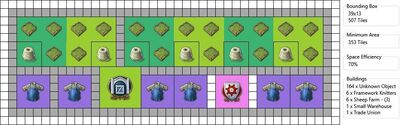

Cloaths WH TU.jpg

A full production chain for work clothes with Trade Union. Can easyly be duplicated the dubble amount.

Buildings: 4 Work clothes.png • 4 Wool.png • 1 Warehouse.png • 1 Trade Union.png
Construction costs: 3800 Credits.png • 51 Timber.png • 5 Bricks.png
Maintenance: -350 Balance.png • -240 Workforce - farmers.png
Size: 39x13 Tiles: 507Tile.png Space Efficiency:
Production (per minute): 8 Work clothes.png
Author:  Fastchiller & SightZyra • Source: https://www.youtube.com/watch?v=BGVjFE6o6pQ&list=PLloFI03sBrvSzWGUPQ1drt2XoAB5LVUyp&index=3


Work Clothes 08 WH BH

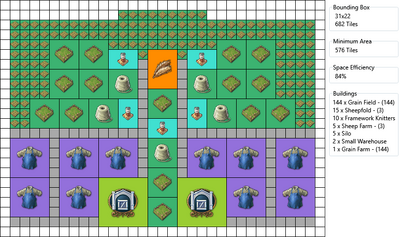

Workclothes BH 2.png

A full production chain for work clothes, needs Brightest Harvest DLC

Buildings: 2 Warehouse.png • 10 Work Clothes.png • 5 Wool.png • 5 Silo.png • 15 Farm module.png • 1 Grain.png • 144 Farm module.png
Construction costs: 11000 Credits.png • 154 Timber.png • 50 Bricks.png
Maintenance: 640 Balance.png • 570 Workforce - farmers.png
Size: 31x22 Tiles: 576Tile.png Space Efficiency:
Production (per minute): 20 Work clothes.png
AuthorgschagasSource:


Work Clothes 09 WH BH

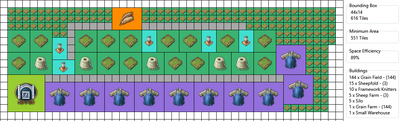

Workclothes BH 3.png

A full production chain for work clothes, needs Brightest Harvest DLC

Buildings: 1 Warehouse.png • 10 Work Clothes.png • 5 Wool.png • 5 Silo.png • 15 Farm module.png • 1 Grain.png • 144 Farm module.png
Construction costs: 10500 Credits.png • 144 Timber.png • 50 Bricks.png
Maintenance: 620 Balance.png • 570 Workforce - farmers.png
Size: 44x14 Tiles: 551Tile.png Space Efficiency: 89%
Production (per minute): 20 Work clothes.png
Author:  Jakobis • Source:


Work Cloths 10 WH TU FS BH

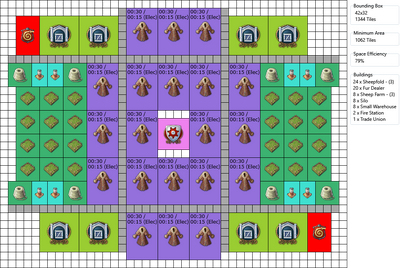

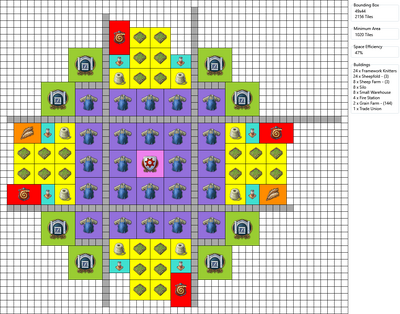

Work Cloth 10 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Work Clothes 11 WH TU FS

Work Cloth 11 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Mixed

Schnapps and Work Clothes 01 WH


Combined Production of Schnapps and Work Cloth with shortest transportation. Street around the Layout recommended

Buildings: 1 Warehouse.png • 1 Potato.png • 1 Schnapps.png • 1 Wool.png • 1 Work clothes.png
Construction costs: 900 Credits.png • 18 Timber.png
Maintenance: -120 Balance.png • -90 Workforce - farmers.png
Size: 13 x 14 Tiles: 182Tile.png Space Efficiency:
Production (per minute): 2 Schnapps.png• 2 Work clothes.png
Author:  Medaurus • Source:


Schnapps and Work Clothes 02 WH

Clothes-schnapps 2x2 layout.png

Complete production chains for:

• Schnapps x 2 • Work Clothes x 2

Road access to all production modules for access to Fire Station

Buildings: 1 Warehouse.png • 2 Schnapps.png • 2 Potato.png • 2 Work clothes.png • 2 Wool.png
Construction costs: 1500 Credits.png • 26 Timber.png
Maintenance: -260 Balance.png • -260 Workforce - farmers.png
Size: 21 x 17 (bottom road) Tiles: 357Tile.png Space Efficiency:
Production (per minute): 4 Schnapps.png• 4 Work clothes.png
Author:  AnnoWerx • Source:


Schnapps and Work Clothes 03 WH

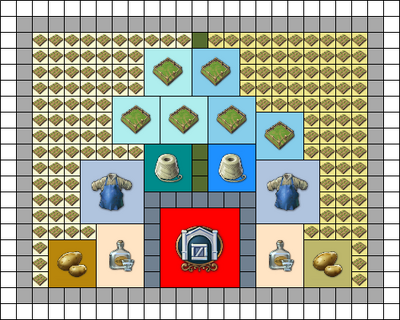

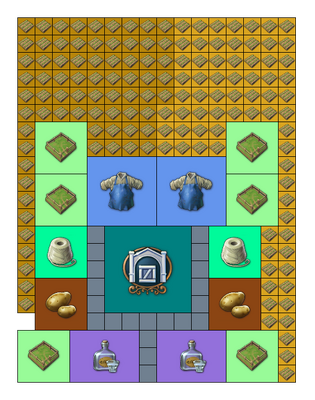

Mixed Schnapps and Work Clothes 03 WH.png

Complete production chains for 2 Schnapps and 2 Work Clothes with 1 tile transportation paths. 94% space efficiency with road access to all production modules for Fire Stations.

Buildings: 2 Work Clothes.png • 2 Wool.png • 2 Schnapps.png • 2 Potatoes.png • 1 Warehouse.png
Construction costs: 2134 Credits.png • 26 Timber.png
Maintenance: 280 Balance.png • 260 Workforce - farmers.png
Size: 16x21 Tiles: 315Tile.png Space Efficiency: 94%
Production (per minute): 4 Work Clothes.png• 4 Schnapps.png
AuthorInigoIVIontoyaSource: -


Workers tier layouts

Beer

Beer 01 WH

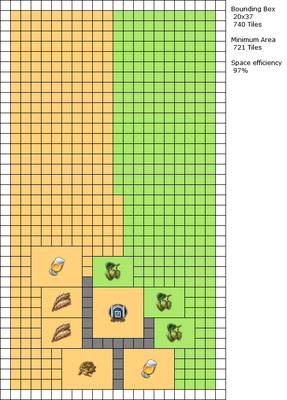

Beer Layout.png

A full production chain for Beer, needs Medium Warehouse

Buildings: 1 Warehouse.png • 3 Hops.png • 2 Grain.png • 1 Malt.png • 2 Beer.png • 576 Farm module.png
Construction costs: 9580 Credits.png • 44 Timber.png • 15 Bricks.png • 12 Steel beams.png
Maintenance: -700 Balance.png • -100 Workforce - farmers.png • -175 Workforce - workers.png
Size: 20 x 37 Tiles: 740Tile.png Space Efficiency:
Production (per minute): 2 Beer.png
AuthorCris5007Source:


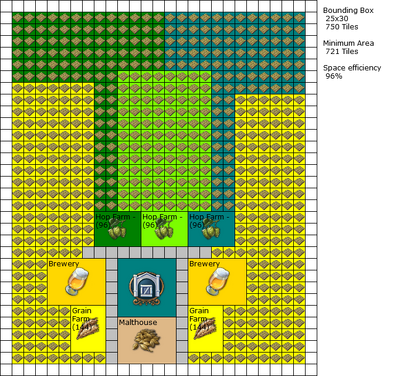

Beer 02 WH


A full production chain for Beer

Buildings: 1 Warehouse.png • 3 Hops.png • 2 Grain.png • 1 Malt.png • 2 Beer.png • 576 Farm module.png
Construction costs: 9580 Credits.png • 44 Timber.png • 15 Bricks.png • 12 Steel beams.png
Maintenance: -700 Balance.png • -100 Workforce - farmers.png • -175 Workforce - workers.png
Size: 30 x 25 (no roads) Tiles: 750Tile.png Space Efficiency:
Production (per minute): 2 Beer.png
AuthorKhypsOSSource: Twitch KhypsOS


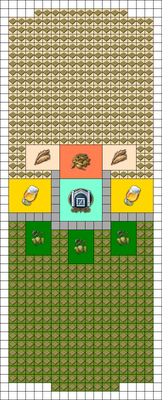

Beer 03 WH

Beer Layout Street Middle SmokingCrop.png

A full production chain for Beer with a street in the middle.

Buildings: 1 Warehouse.png • 3 Hops.png • 2 Grain.png • 1 Malt.png • 2 Beer.png • 576 Farm module.png
Construction costs: 9580 Credits.png • 44 Timber.png • 15 Bricks.png • 12 Steel beams.png
Maintenance: -700 Balance.png • -100 Workforce - farmers.png • -175 Workforce - workers.png
Size: 17 x 45 Tiles: 721Tile.png Space Efficiency:
Production (per minute): 2 Beer.png
AuthorSmokingCropSource:


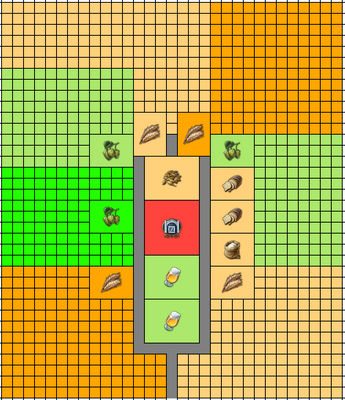

Beer 04 WH


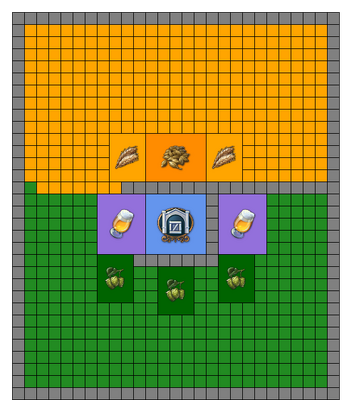

A full production chain that can be easily mirrored.

Buildings: 1 Warehouse.png • 3 Hops.png • 2 Grain.png • 1 Malt.png • 2 Beer.png • 576 Farm module.png
Construction costs: 9580 Credits.png • 44 Timber.png • 15 Bricks.png • 12 Steel beams.png
Maintenance: -700 Balance.png • -100 Workforce - farmers.png • -175 Workforce - workers.png
Size: 25 x 30 Tiles: 721Tile.png Space Efficiency:
Production (per minute): 2 Beer.png
AuthorCelebaneSource:


Beer 05 WH TU

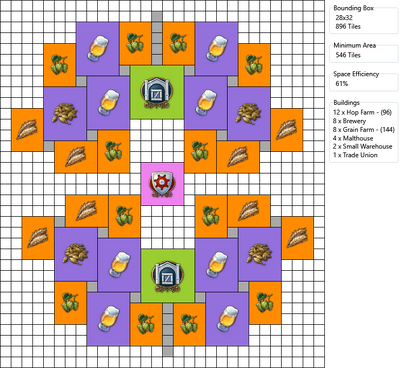

Layout Beer WH TU.png

An optimized beer chain with full trade union coverage. Fields were omitted.

Buildings: 2 Warehouse.png • 12 Hops.png • 8 Grain.png • 4 Malt.png • 8 Beer.png
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
Production (per minute): 8 Beer.png
AuthorJesta88Source:


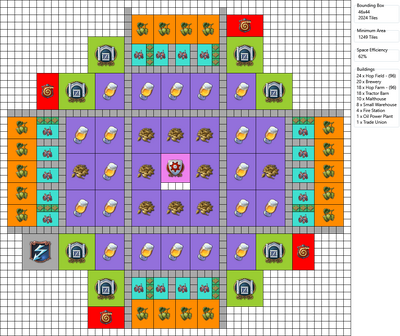

Beer 06 WH TU FS

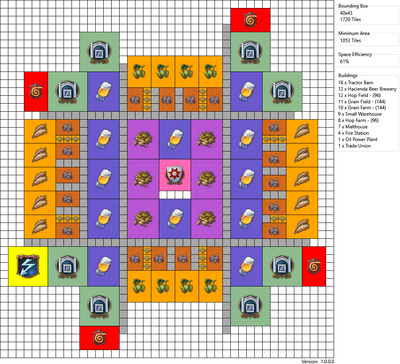

Beer 06 WH TU FS.png

{{{Layout description}}}

Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Beer 07 WH TU FS

Beer 07 WH TU FS.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Bread

Bread 01

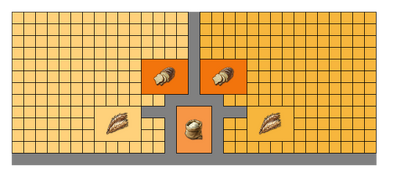

Bread Production2.png

A full production chain for Bread

Buildings: 2 Grain.png • 1 Flour.png • 2 Bread.png • 288 Farm module.png
Construction costs: 2500 Credits.png • 20 Timber.png • 15 Bricks.png
Maintenance: -210 Balance.png • -50 Workforce - farmers.png • -100 Workforce - workers.png
Size: 31 x 12 (no roads) Tiles: 372Tile.png Space Efficiency:
Production (per minute): 2 Bread.png
AuthorSting_McRaySource:


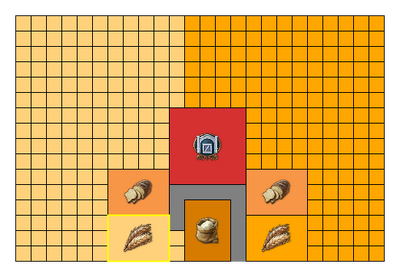

Bread 02 WH


A full production chain for Bread with shortest possible transportation (Always 1 Grid)

Buildings: 1 Warehouse.png • 2 Grain.png • 1 Flour.png • 2 Bread.png • 288 Farm module.png
Construction costs: 3000 Credits.png • 30 Timber.png • 15 Bricks.png
Maintenance: -230 Balance.png • -50 Workforce - farmers.png • -100 Workforce - workers.png
Size: 24 x 16 Tiles: 384Tile.png Space Efficiency:
Production (per minute): 2 Bread.png
AuthorSnoopadelicxSource:


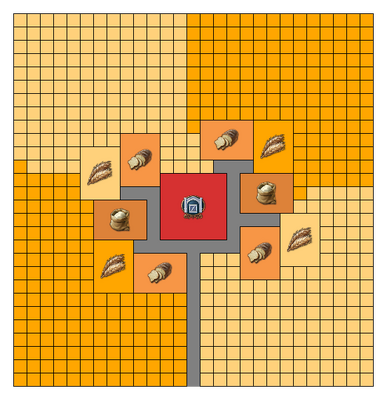

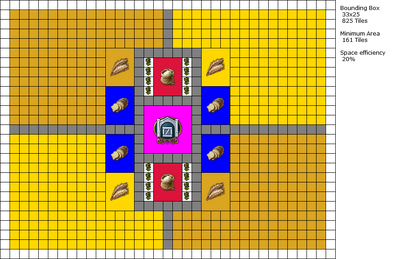

Bread 03 WH


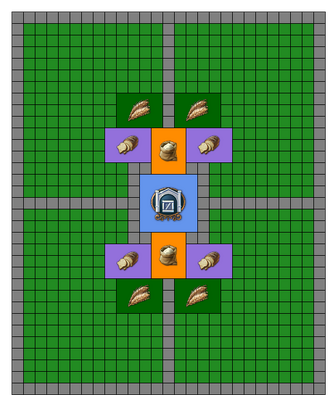

A full production chain for 4 Bakeries with the shortest transportation paths. Requires fully upgraded Warehouse.

Buildings: 1 Warehouse.png • 4 Grain.png • 2 Flour.png • 4 Bread.png • 576 Farm module.png
Construction costs: 5000 Credits.png • 40 Timber.png • 30 Bricks.png
Maintenance: -420 Balance.png • -100 Workforce - farmers.png • -200 Workforce - workers.png
Size: 27 x 28 Tiles: 756Tile.png Space Efficiency:
Production (per minute): 4 Bread.png
AuthorSnoopadelicxSource:


Bread 04 WH

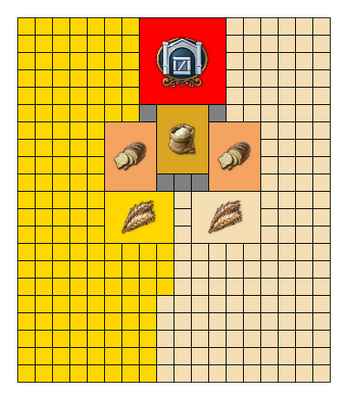

Bread Layout Yuzhou.png

A full production chain for Bread with shortest possible transportation (Always 1 Grid) and the smallest size.

Buildings: 1 Warehouse.png • 2 Grain.png • 1 Flour.png • 2 Bread.png • 288 Farm module.png
Construction costs: 3000 Credits.png • 30 Timber.png • 15 Bricks.png
Maintenance: -230 Balance.png • -50 Workforce - farmers.png • -100 Workforce - workers.png
Size: 18 x 21 Tiles: 378Tile.png Space Efficiency:
Production (per minute): 2 Bread.png
AuthorYuzhouwangSource:


Bread 05 WH


A full production chain for Bread

Buildings: 1 Warehouse.png • 4 Grain.png • 2 Flour.png • 4 Bread.png • 576 Farm module.png
Construction costs: 7000 Credits.png • 40 Timber.png • 30 Bricks.png
Maintenance: -420 Balance.png • -100 Workforce - farmers.png • -200 Workforce - workers.png
Size: 29 x 25 (no roads) Tiles: 725Tile.png Space Efficiency:
Production (per minute): 4 Bread.png
AuthorKhypsOSSource: Twitch KhypsOS


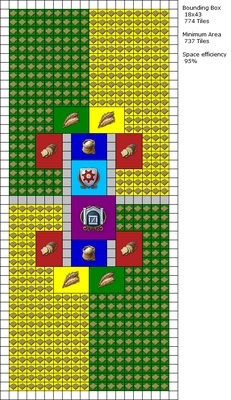

Bread 06 WH TU


Bread with Trade Union

Buildings: 1 Warehouse.png • 4 Grain.png • 2 Flour.png • 4 Bread.png • 576 Farm module.png • 1 Trade Union.png
Construction costs: 9500 Credits.png • 65 Timber.png • 35 Bricks.png
Maintenance: -470 Balance.png • -100 Workforce - farmers.png • -200 Workforce - workers.png
Size: 18 x 43 (with roads) Tiles: 774Tile.png Space Efficiency:
Production (per minute): 4 Bread.png
AuthorCelebaneSource:


Bread 07 WH


Seems to be a lot of bread. If you like building big like me use it. Can be combined with my beer layout perfect. Can be combined with my other layouts too

Buildings: 1 Warehouse.png • 2 Flour.png • 4 Grain.png • 4 Bread.png
Construction costs: 5500 Credits.png • 34 Timber.png • 10 Bricks.png
Maintenance: -440 Balance.png • -100 Workforce - farmers.png • -200 Workforce - workers.png
Size: 33x25 Tiles: 825Tile.png Space Efficiency:
Production (per minute): 4 Bread.png
AuthorSyrathusSource:


Bread 08 WH TU


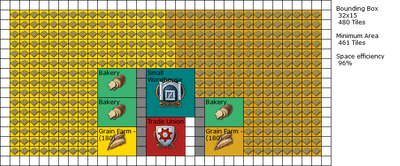

A small 96% efficient bread production area using a Trade Union with a Baker and Expert Planter. Still leaves you one slot for either increasing production more or reducing maintenance costs.

Buildings: 1 Warehouse.png • 2 Grain.png • 360 Farm module.png • 3 Bread.png • 1 Trade Union.png
Construction costs: 7200 Credits.png • 55 Timber.png • 20 Bricks.png
Maintenance: -290 Balance.png • 40 Workforce - farmers.png • 100 Workforce - workers.png • 20 Influence.png
Size: 15x32 Tiles: 480Tile.png Space Efficiency:
Production (per minute): 3 Bread.png
AuthorV0nMaximilianSource:


Bread 09 WH FS

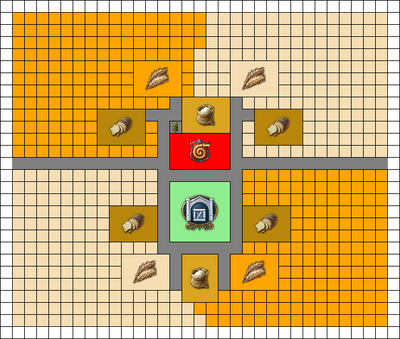

Bread 09.png

A full production chain for Bread with warehouse and fire station

Buildings: 4 Grain.png • 2 Flour.png • 4 Bread.png • 576 Farm module.png • 1 Warehouse.png • 1 Fire station.png
Construction costs: 8000 Credits.png • 54 Timber.png • 30 Bricks.png
Maintenance: -465 Balance.png • -100 Workforce - farmers.png • -200 Workforce - workers.png
Size: 31 x 26 (no roads) Tiles: 806Tile.png Space Efficiency:
Production (per minute): 4 Bread.png
AuthorSting_McRaySource:


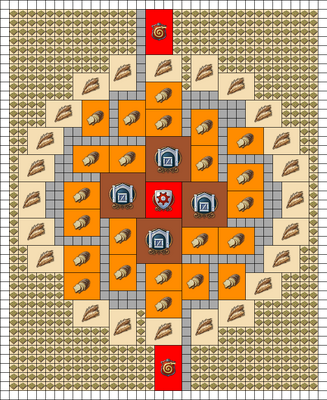

Bread 10 WH TU FS

Wheat bread.png

You need a Baker in your TU. A full production chain of Bread on a production island. Warehouse needs to be fully upgraded. Farm modules can be placed individual. Both ways must be connected with main street.

Buildings: 1 Trade Union.png • 2 Fire station.png • 4 Warehouse.png • 23 Grain.png • 23 Bread.png • 3312 Farm module.png
Construction costs: 66560 Credits.png • 337 Timber.png • 200 Bricks.png
Maintenance: -2020 Balance.png • -460 Workforce - farmers.png • -1150 Workforce - workers.png • 20 Influence.png
Size: 32x42 (no farm modules) Tiles: 4656Tile.png Space Efficiency:
Production (per minute): 23 Bread.png
AuthorShiyodaSource:


Bread 11 WH TU

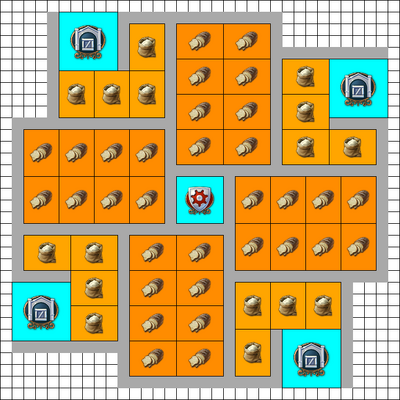

Bread & flour.png

Layout for bread and flour only. All warehouses must be lvl 3. With a Baker, flour mills can be replaced by Bakeries. Firestations can be placed in empty angles. Space Efficiency : 67% (73% with fire stations)

Buildings: 32 Bread.png • 16 Flour.png • 4 Warehouse.png
Construction costs: 92000 Credits.png • 432 Timber.png • 440 Bricks.png • 80 Steel beams.png • 80 Windows.png
Maintenance: -3080 Balance.png • -160 Workforce - farmers.png • -1600 Workforce - workers.png
Size: 32 x 32 Tiles: 1024Tile.png Space Efficiency:
Production (per minute): 32 Bread.png
AuthorRockefeller157Source:


Bread 12 WH TU FS

Bread WH TU FS.jpg

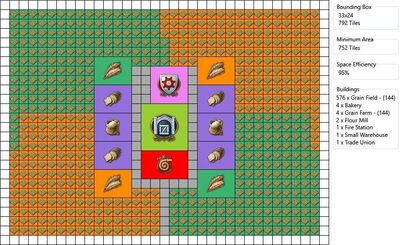

A full production chain for Bread with Firestation and Trade Union

Buildings: 4 Grain.png • 2 Flour Mill.png • 4 Bakery.png • 1 Warehouse.png • 1 Trade Union.png • 1 Fire station.png
Construction costs: 6500 Credits.png • 63 Timber.png • 15 Bricks.png
Maintenance: -275 Balance.png • -100 Workforce - farmers.png • -100 Workforce - workers.png
Size: 33x24 Tiles: 792Tile.png Space Efficiency: 95%
Production (per minute): 4 Bread.png
Author:  Fastchiller & SightZyra • Source: https://www.youtube.com/watch?v=aRBkO2jVJy4&list=PLloFI03sBrvSzWGUPQ1drt2XoAB5LVUyp&index=5


Bread 13 WH TU - w/ Baker Only


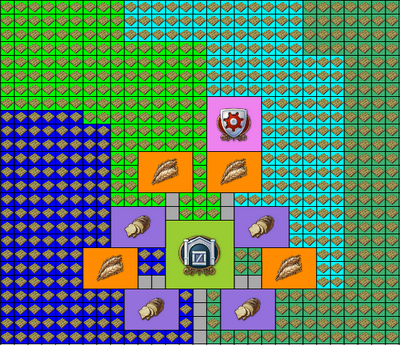

Production chain for 4 bakeries, trade union w/ baker. Medium warehouse seems fine.

Buildings: 1 Warehouse.png • 4 Grain.png • 4 Bread.png • 1 Trade Union.png • 576 Farm module.png
Construction costs: 14,380 Credits.png • 40 Bricks.png
Maintenance: -870 Balance.png • -80 Workforce - farmers.png • -200 Workforce - workers.png
Size: 25 x 29 Tiles: 725Tile.png Space Efficiency: 98%
Production (per minute): 4 Bread.png
Author:  umer • Source:


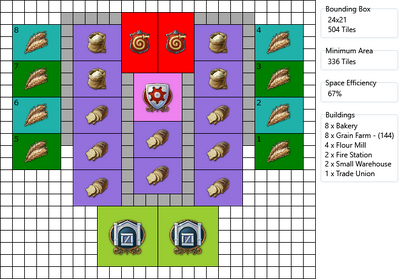

Bread 14 WH TU FS

Bread 14 WH TU FS.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Bread 15 WH TU FS BH

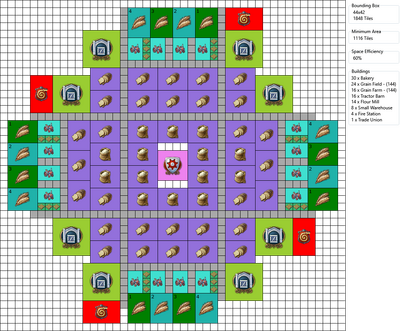

Bread 15 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Pigs

Pigs 01

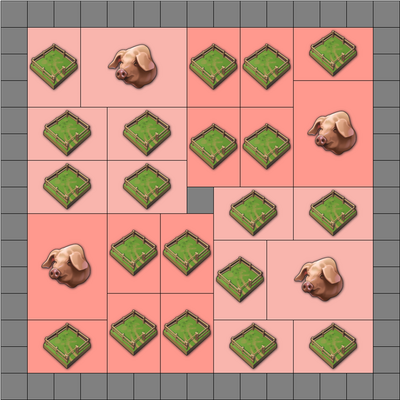

Pig Farm05.png

This is a typical 4 Pig Farm setup which ideally can be used in a 15x15 tile set-up

Buildings: 4 Pigs.png • 20 Farm module.png
Construction costs: 2000 Credits.png • 16 Timber.png
Maintenance: -160 Balance.png • -120 Workforce - farmers.png • -12 Attractiveness.png
Size: 15 x 15 Tiles: 225Tile.png Space Efficiency:
Production (per minute): 4 Pigs.png
AuthorKartographerSource:


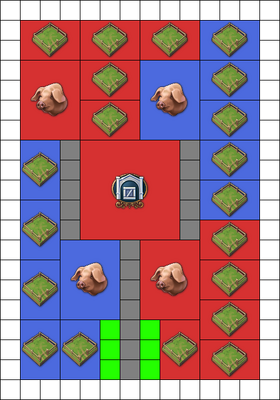

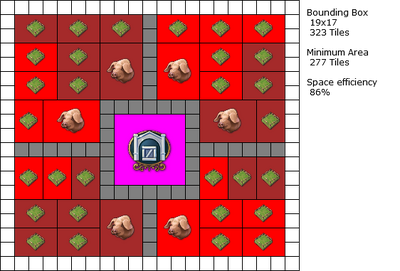

Pigs 02 WH


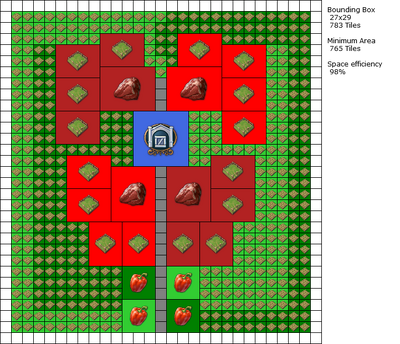

89% efficient 4 Pig Farm steup with a warehouse. 6 green tiles included for optional decoration, road required to connect to island storage.

Buildings: 1 Warehouse.png • 4 Pigs.png • 20 Farm module.png
Construction costs: 2500 Credits.png • 26 Timber.png
Maintenance: -180 Balance.png • -120 Workforce - farmers.png • -12 Attractiveness.png
Size: 12x18 Tiles: 216Tile.png Space Efficiency:
Production (per minute): 4 Pigs.png
AuthorMushaySource:


Pigs 03 WH


Oink oink. Lots of pigs on small stable size. Should help with sausages and soaps at different places

Buildings: 1 Warehouse.png • 6 Pigs.png • 30 Farm module.png
Construction costs: 3500 Credits.png • 34 Timber.png
Maintenance: -260 Balance.png • -180 Workforce - farmers.png • -18 Attractiveness.png
Size: 19x17 Tiles: 323Tile.png Space Efficiency:
Production (per minute): 6 Pigs.png
AuthorSyrathusSource:


Pigs 04 WH TU FS


Focus is to pack as many pig farms into the radius of the Trade Union. A road is required for every warehouse to function properly. This is a radially symmetrical layout.

Buildings: 1 Trade Union.png • 4 Warehouse.png • 4 Fire station.png • 32 Pigs.png • 160 Farm module.png
Construction costs: 26500 Credits.png • 209 Timber.png • 5 Bricks.png
Maintenance: -1510 Balance.png • -960 Workforce - farmers.png • -96 Attractiveness.png • 20 Influence.png
Size: 46x46 Tiles: 2116Tile.png Space Efficiency:
Production (per minute): 32 Pigs.png
Author:  Flipsider101 • Source: https://www.reddit.com/r/anno/comments/bjv57q/high_efficiency_layouts_extras/embre3c/


Pigs 05 WH TU FS

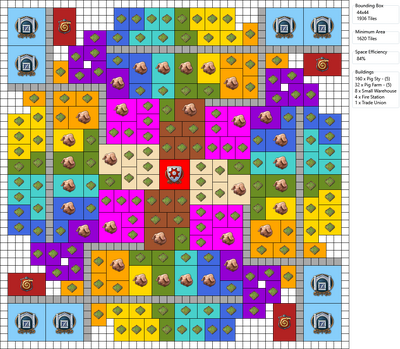

Pig farm.png

This is an easier layout for players to use in game because of the square like shapes.

Buildings: 1 Trade Union.png • 4 Warehouse.png • 8 Fire station.png • 32 Pigs.png • 160 Farm module.png
Construction costs: 28500 Credits.png • 249 Timber.png • 5 Bricks.png
Maintenance: -1590 Balance.png • -960 Workforce - farmers.png • -96 Attractiveness.png • 20 Influence.png
Size: 44x44 Tiles: 1936Tile.png Space Efficiency: 84%
Production (per minute): 32 Pigs.png
Author:  可爱魔力红 • Source:


Pigs 06 WH BH

Pigs 06 WH BH.png

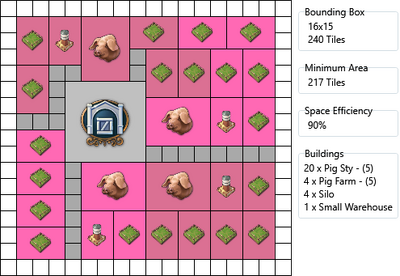

Buildings: 1 Warehouse.png • 4 Pigs.png • 20 Farm module.png • 4 Silo.png
Construction costs:
Maintenance:
Size: 16 x 15 Tiles: 240Tile.png Space Efficiency: 90%
AuthorKikittoumouSource:


Sails

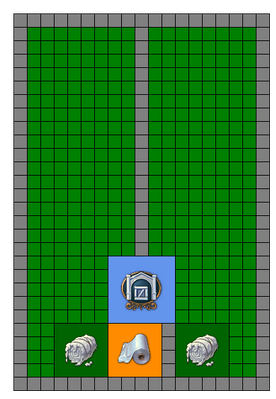

Sails 01 WH

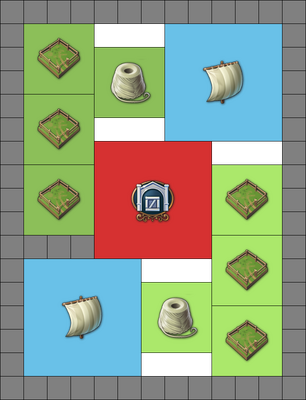

Sail Maker.png

A full production chain for Sailmakers

Buildings: 1 Warehouse.png • 2 Wool.png • 2 Sails.png • 6 Farm module.png
Construction costs: 1700 Credits.png • 30 Timber.png • 20 Bricks.png
Maintenance: -210 Balance.png • -20 Workforce - farmers.png • -100 Workforce - workers.png
Size: 11 x 15 (no roads) Tiles: 165Tile.png Space Efficiency:
Production (per minute): 4 Sails.png
AuthorMadaahkSource: Reddit


Sails 02 WH TU

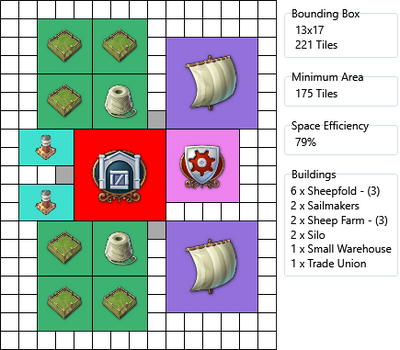

Sailmakers WH TU.png

A full sails production chain that also produced extra wool to be used for other production items. Medium warehouse is good enough, no grain fields included for silos.

Buildings: 1 Warehouse.png • 1 Trade Union.png • 2 Wool.png • 2 Sails.png • 6 Farm module.png • 2 Silo.png
Construction costs: 8808 Credits.png • 145 Timber.png • 65 Bricks.png
Maintenance: 250 Balance.png • 20 Workforce - farmers.png • 100 Workforce - workers.png • 20 Influence.png
Size: 13x17 Tiles: 221Tile.png Space Efficiency: 79%
Production (per minute): 4 Sails.png• 2 Wool.png
Author:  DeckOfWonder • Source:


Sails 03 WH TU FS

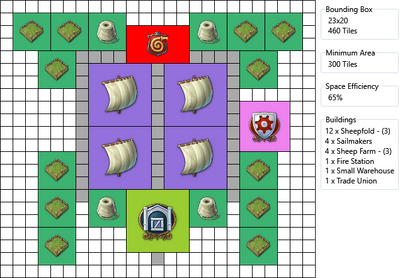

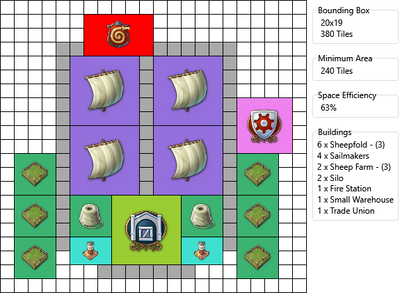

Sails 03 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Sails 04 WH TU FS

Sails 04 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Sausages

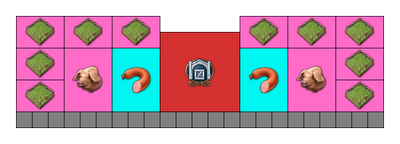

Sausages 01 WH

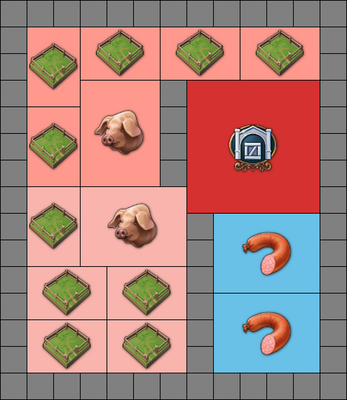

Sausage Factory.png

A full production chain of Sausages

Buildings: 1 Warehouse.png • 2 Pigs.png • 2 Sausages.png • 10 Farm module.png
Construction costs: 2500 Credits.png • 26 Timber.png • 10 Bricks.png
Maintenance: -320 Balance.png • -60 Workforce - farmers.png • -100 Workforce - workers.png • -16 Attractiveness.png
Size: 13 x 11 Tiles: 143Tile.png Space Efficiency:
Production (per minute): 2 Sausages.png
AuthorMadaahkSource: Reddit


Sausages 02 WH

Sausages layout 2.png

A very efficient layout for 2 slaughterhouses with 2 pig farms, with transportation time as short as possible

Buildings: 1 Warehouse.png • 2 Pigs.png • 3 Sausages.png • 10 Farm module.png
Construction costs: 2750 Credits.png • 26 Timber.png • 10 Bricks.png
Maintenance: -260 Balance.png • -60 Workforce - farmers.png • -100 Workforce - workers.png • -16 Attractiveness.png
Size: 7 x 23 Tiles: 161Tile.png Space Efficiency:
Production (per minute): 2 Sausages.png
AuthorBanan1996.1996Source:


Sausages 03 WH

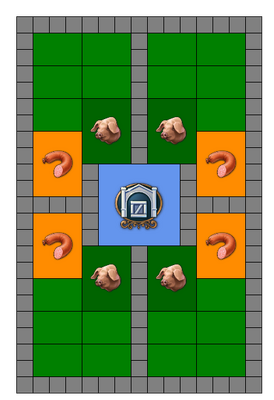

Sausages 03.png

A full production chain for Sausages, needs Medium Warehouse

Buildings: 1 Warehouse.png • 4 Pigs.png • 4 Sausages.png • 20 Farm module.png
Construction costs: 4500 Credits.png • 42 Timber.png • 20 Bricks.png
Maintenance: -500 Balance.png • -120 Workforce - farmers.png • -200 Workforce - workers.png • -32 Attractiveness.png
Size: 19 x 14 (no top road) Tiles: 266Tile.png Space Efficiency:
Production (per minute): 4 Sausages.png
AuthorSting_McRaySource:


Sausages 04

Simple Sausage.png

Simple sausage layout

Buildings: • 1 Pigs.png • 1 Sausages.png • 5 Farm module.png
Construction costs: 1125 Credits.png • 8 Timber.png • 5 Bricks.png
Maintenance: -120 Balance.png • -30 Workforce - farmers.png • -50 Workforce - workers.png • -8 Attractiveness.png
Size: 6 x 10 Tiles: 60Tile.png Space Efficiency:
Production (per minute): 1 Sausages.png
AuthorYuzhouwangSource:


Sausages 05 WH


A full production chain for Sausages

Buildings: 1 Warehouse.png • 4 Pigs.png • 4 Sausages.png • 20 Farm module.png
Construction costs: 4500 Credits.png • 42 Timber.png • 20 Bricks.png
Maintenance: -500 Balance.png • -120 Workforce - farmers.png • -200 Workforce - workers.png • -32 Attractiveness.png
Size: 21 x 13 (no roads) Tiles: 273Tile.png Space Efficiency:
Production (per minute): 4 Sausages.png
AuthorKhypsOSSource: Twitch KhypsOS


Sausages 06 WH

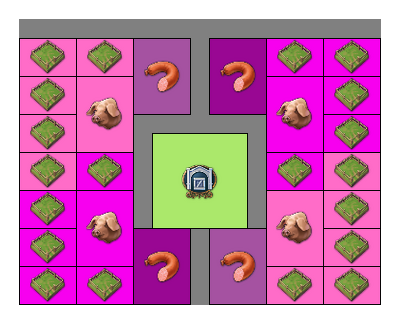

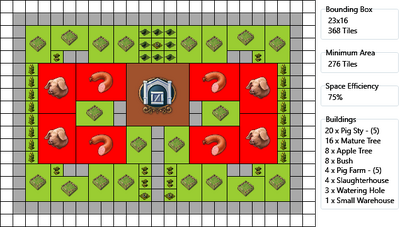

Sausageslayout tiuri1.png

A full production chain for Sausages. Lvl 1 Warehouse and it looks nice.

Buildings: 1 Warehouse.png • 4 Pigs.png • 4 Sausages.png • 20 Farm module.png
Construction costs: 4500 Credits.png • 42 Timber.png • 20 Bricks.png
Maintenance: -500 Balance.png • -120 Workforce - farmers.png • -200 Workforce - workers.png • -32 Attractiveness.png
Size: 22 x 15 (no roads) Tiles: 330Tile.png Space Efficiency: 75%
Production (per minute): 4 Sausages.png
AuthorTiuri1Source:


Sausages 07 WH SL BH

Sausages silo grain WH BH.png

A full production chain for Sausages, pigs at 200% with silo and grain

Buildings: 2 Warehouse.png • 4 Pigs.png • 8 Sausages.png • 20 Farm module.png • 1 Grain.png
Construction costs: 12500 Credits.png • 112 Timber.png • 72 Bricks.png
Maintenance: -2795 Balance.png • -540 Workforce - farmers.png • -400 Workforce - workers.png • 20 Influence.png
Size: 26 x 26 (no roads) Tiles: 518Tile.png Space Efficiency: 77%
AuthorCarnageginSource:


Sausages 08 WH TU FS

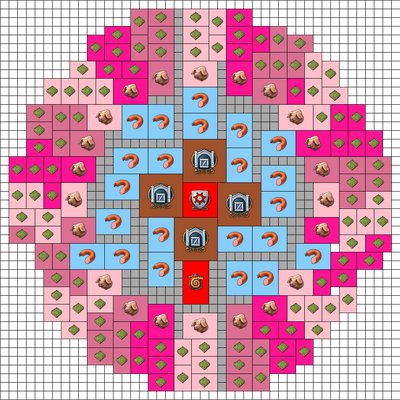

Sausages pigs.png

A full production chain of Sausages on a production island. Warehouse needs to be fully upgraded.

Buildings: 1 Trade Union.png • 1 Fire station.png • 4 Warehouse.png • 22 Pigs.png • 22 Sausages.png • 110 Farm module.png
Construction costs: 35000 Credits.png • 325 Timber.png • 195 Bricks.png
Maintenance: -2795 Balance.png • -660 Workforce - farmers.png • -1100 Workforce - workers.png • -176 Attractiveness.png • 20 Influence.png
Size: 44 x 44 Tiles: 1936Tile.png Space Efficiency:
Production (per minute): 22 Sausages.png
AuthorShiyodaSource:


Sausages 09 WH TU FS

Sasuages 09 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


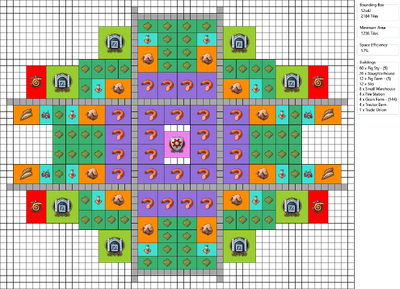

Sausages 10 WH TU FS BH

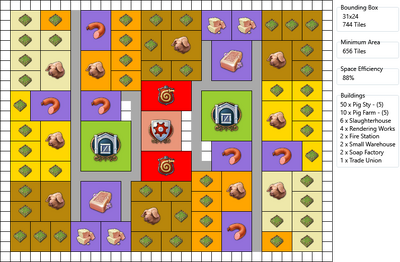

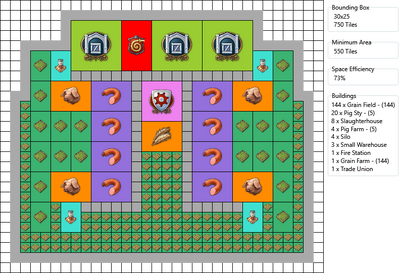

Sausages 10 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Soap

Soap 01 WH

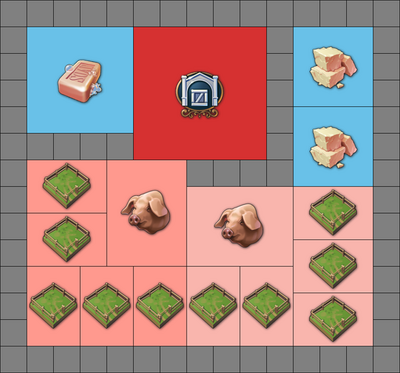

Soap Layout.png

A full production chain for soap

Buildings: 1 Warehouse.png • 1 Soap.png • 2 Pigs.png • 2 Tallow.png • 10 Farm module.png
Construction costs: 3000 Credits.png • 30 Timber.png • 15 Bricks.png • 12 Steel beams.png
Maintenance: -290 Balance.png • -190 Workforce - farmers.png • -21 Attractiveness.png
Size: 13 x 12 (no roads) Tiles: 156Tile.png Space Efficiency:
Production (per minute): 2 Soap.png
AuthorMadaahkSource: Reddit


Soap 02

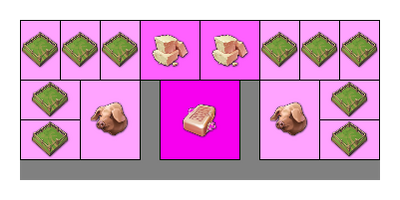

Soap 2.png

A full production chain for Soap

Buildings: 1 Soap.png • 2 Tallow.png • 2 Pigs.png • 10 Farm module.png
Construction costs: 2500 Credits.png • 16 Timber.png • 15 Bricks.png • 12 Steel beams.png
Maintenance: -210 Balance.png • -80 Workforce - farmers.png • -130 Workforce - workers.png • -18 Attractiveness.png
Size: 18 x 8 Tiles: 144Tile.png Space Efficiency:
Production (per minute): 2 Soap.png
AuthorSting_McRaySource:


Soap 03 WH

Soap Layout Yuzhou.png

A full production chain for soap

Buildings: 1 Warehouse.png • 1 Soap.png • 2 Pigs.png • 2 Tallow.png • 10 Farm module.png
Construction costs: 3000 Credits.png • 30 Timber.png • 15 Bricks.png • 12 Steel beams.png
Maintenance: -290 Balance.png • -190 Workforce - farmers.png • -21 Attractiveness.png
Size: 14 x 11 Tiles: 154Tile.png Space Efficiency:
Production (per minute): 2 Soap.png
AuthorYuzhouwangSource:


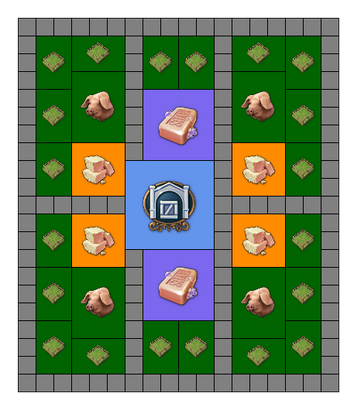

Soap 04 WH


A full production chain for soap

Buildings: 1 Warehouse.png • 2 Soap.png • 4 Pigs.png • 4 Tallow.png • 20 Farm module.png
Construction costs: 5500 Credits.png • 50 Timber.png • 30 Bricks.png • 24 Steel beams.png
Maintenance: -400 Balance.png • -120 Workforce - farmers.png • -210 Workforce - workers.png • -42 Attractiveness.png
Size: 19 x 16 (no roads) Tiles: 304Tile.png Space Efficiency:
Production (per minute): 4 Soap.png
AuthorKhypsOSSource: Twitch KhypsOS


Soap 05 WH BH

Stackable soap farm.png

Stackable Soap Farm

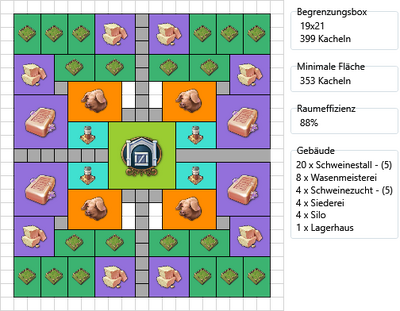

Buildings: 1 Warehouse.png • 4 Soap.png • 4 Pigs.png • 8 Tallow.png • 20 Farm module.png • 4 Silo.png
Construction costs:
Maintenance:
Size: 19 x 21 Tiles: 353Tile.png Space Efficiency: 88 %
Author:  zeremonie • Source:


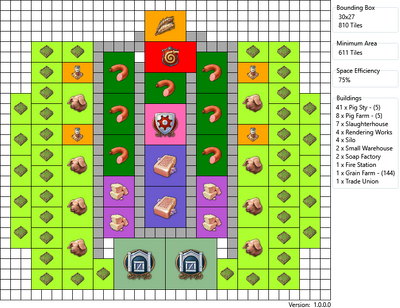

Soap 06 WH TU FS BH

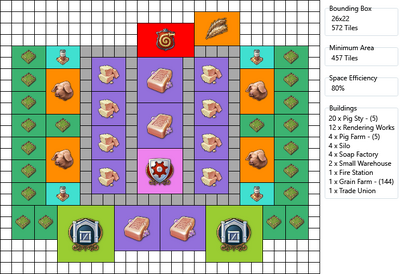

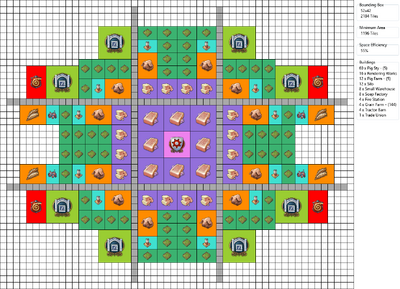

Soap 06 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Soap 07 WH TU FS BH

Soap 07 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Mixed

Bread and Beer 01 WH

Bread and beer.png

A full production chain for 2 Bakeries and 2 Breweries with the shortest transportation paths. Requires fully upgraded Warehouse

Buildings: 1 Warehouse.png • 4 Grain.png • 1 Flour.png • 2 Bread.png • 3 Hops.png • 2 Beer.png • 864 Farm module.png
Construction costs: 9000 Credits.png • 62 Timber.png • 30 Bricks.png • 12 Steel beams.png
Maintenance: -720 Balance.png • -150 Workforce - farmers.png • -250 Workforce - workers.png
Size: 31 x 36 Tiles: 1116Tile.png Space Efficiency:
Production (per minute): 2 Bread.png• 2 Beer.png
AuthorSkipOneEBRSource:


Sausages and Soap 01 WH

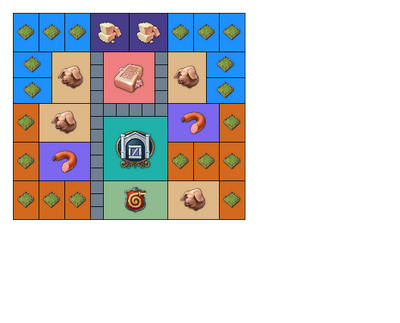

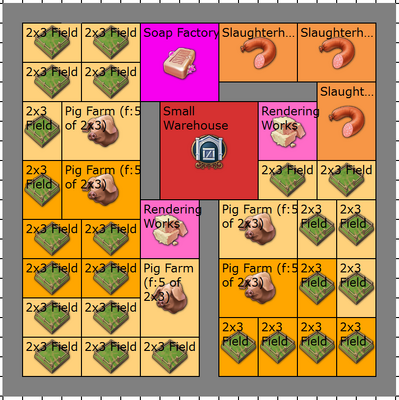

Sausages and soap.png

A full production chain for Sausages and Soap, warehouse lv3 required for balancing

Buildings: 1 Warehouse.png • 5 Pigs.png • 3 Sausages.png • 2 Tallow.png • 1 Soap.png • 25 Farm module.png
Construction costs:
Maintenance:
Size: 18 x 18 Tiles: 324Tile.png Space Efficiency:
Production (per minute): 3 Sausages.png• 2 Soap.png
AuthorSkipOneEBRSource:


Sausages and Soap 02 WH

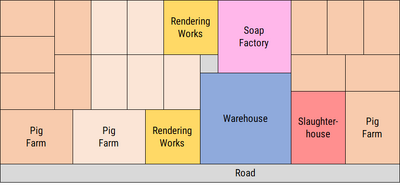

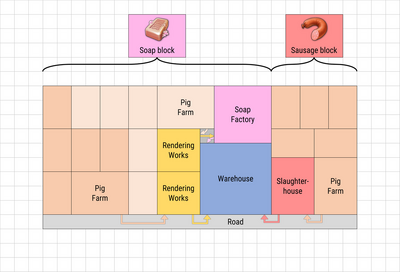

Sausages and Soap 02.png

A compact, expandable Soap and Sausage layout.

Buildings: 1 Warehouse.png • 3 Pigs.png • 1 Sausages.png • 2 Tallow.png • 1 Soap.png • 15 Farm module.png
Construction costs:  ? Credits.png • ? Timber.png • ? Bricks.png • ? Steel beams.png
Maintenance:  ? Balance.png • ? Workforce - farmers.png • ? Attractiveness.png
Size: 22 x 10 Tiles: 220Tile.png Space Efficiency:
Production (per minute): 1 Sausages.png• 2 Soap.png
AuthorStrikaaaSource: Reddit


Sausages and Soap 03 WH

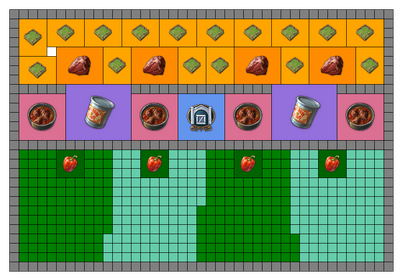

Sausages and Soap 03.png

A compact, expandable Soap and Sausage layout, slightly less efficient than above but all buildings are accessible from the outside.

Buildings: 1 Warehouse.png • 3 Pigs.png • 1 Sausages.png • 2 Tallow.png • 1 Soap.png • 15 Farm module.png
Construction costs:  ? Credits.png • ? Timber.png • ? Bricks.png • ? Steel beams.png
Maintenance:  ? Balance.png • ? Workforce - farmers.png • ? Attractiveness.png
Size: 22 x 10 Tiles: 220Tile.png Space Efficiency:
Production (per minute): 1 Sausages.png• 2 Soap.png
AuthorStrikaaaSource: Reddit


Sausages and Soap 04 FS


A complete layout with x2 sausage and one soap factory + FS.

Buildings: 1 Warehouse.png • 4 Pigs.png • 2 Sausages.png • 2 Tallow.png • 1 Soap.png • 20 Farm module.png • 1 Fire station.png
Construction costs:  ? Credits.png • ? Timber.png • ? Bricks.png • ? Steel beams.png
Maintenance:  ? Balance.png • ? Workforce - farmers.png • ? Attractiveness.png
Size: 18 x16 Tiles: 288Tile.png Space Efficiency: 92%
Production (per minute): 2 Sausages.png• 2 Soap.png
AuthorEntropic8Source:


Sausages and Soap 05 WH FS TU

Sausages and Soap 05 WH FS TU.png

Full production ine for 6 Sausages and 2 Soaps Production, with 2 Warehouses, 2 Fire Stations and 1 Trade Union.

Buildings: 1 Trade Union.png • 2 Warehouse.png • 2 Soap.png • 2 Fire station.png • 4 Tallow.png • 6 Sausages.png • 10 Pigs.png • 50 Farm module.png
Construction costs: 13000 Credits.png • 116 Timber.png • 60 Bricks.png • 24 Steel beams.png
Maintenance: -1230 Balance.png • -300 Workforce - farmers.png • -560 Workforce - workers.png • -90 Attractiveness.png
Size: 31 x 24 Tiles: 744Tile.png Space Efficiency:
Production (per minute): 2 Soap.png• 6 Sausages.png
AuthorSting_McRaySource:


Sausages and Soap 06 WH FS BH

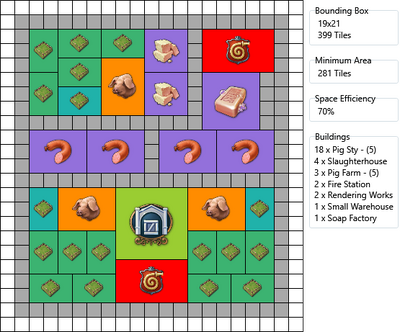

Sausage and soap with silos.png

Full production chain of soap and sausages supported by pig farms utilizing silos. Because Anno Designer isn't updated, replace the teal farm field with a silo. Wants fully upgraded warehouse to be fully functional late game but costs are only calculated for this chain, not any grain farms, and small warehouse upkeep.

Buildings: 1 Warehouse.png • 2 Fire station.png • 1 Soap.png • 2 Tallow.png • 4 Sausages.png • 3 Pigs.png • 15 Farm module.png • 3 Silo.png
Construction costs: 6500 Credits.png • 58 Timber.png • 35 Bricks.png • 12 Steel beams.png
Maintenance: -640 Balance.png • -90 Workforce - farmers.png • -330 Workforce - workers.png • -38 Attractiveness.png
Size: 19x21 Tiles: 399Tile.png Space Efficiency: 70%
Production (per minute): 2 Soap.png• 8 Sausages.png
AuthorEntropic8Source:


Sausages And Soap 07 WH TU FS

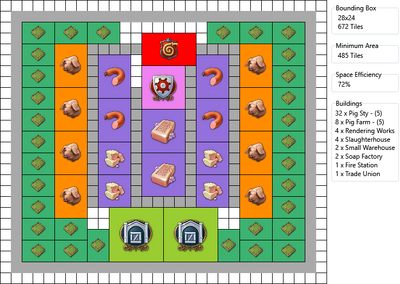

Sasuages And Soap 07 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Sausages And Soap 08 WH TU FS

Sasuages And Soap 08 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Sausages and Soap 09 WH FS BH

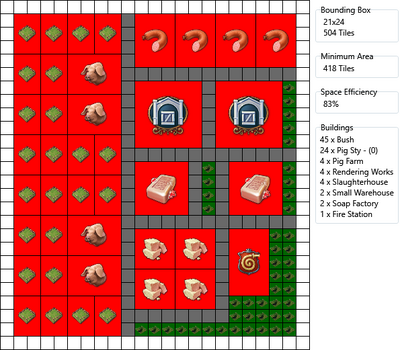

Sausages and Soap Bright harvest.png

Bounding box: 21x23 = 504 Tiles. Minimum Area = 343 Tiles excluding bushes, 418 including. Space Efficiency = 74% excluding bushes, 83% including bushes.

Buildings: 2 Warehouse.png • 1 Fire station.png • 2 Soap.png • 4 Tallow.png • 4 Sausages.png • 4 Pigs.png • 24 Farm module.png • 3 Silo.png • 45 Bush.png
Construction costs:
Maintenance:
Size: 21x23 Tiles: 343/418Tile.png Space Efficiency: 74%/83%
Production (per minute): 2 Soap.png• 8 Sausages.png
AuthorMessSource:


Sausages and Soap 10 WH BH

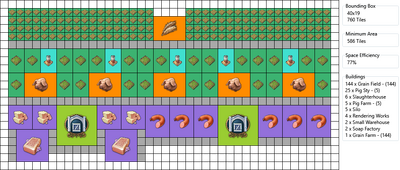

Sausage soap BH.png

A full production chain for sausages and soaps, needs Brightest Harvest DLC

Buildings: 2 Warehouse.png • 2 Soap.png • 4 Tallow.png • 6 Sausages.png • 5 Pigs.png • 25 Farm module.png • 5 Silo.png
Construction costs: 15000 Credits.png • 192 Timber.png • 110 Bricks.png • 24 Steel beams.png
Maintenance: -960 Balance.png • -170 Workforce - farmers.png • -560 Workforce - workers.png
Size: 40x19 Tiles: 586Tile.png Space Efficiency:
Production (per minute): 6 Sausages.png• 4 Soap.png
AuthorgschagasSource:


Work Clothes and Grain WH FS BH

Work Clothes and Grain farm Bright harvest.png

Bounding box: 32x22 = 704 Tiles. Minimum Area = 542 Tiles. Space Efficiency = 77%.

Buildings: 3 Warehouse.png • 1 Fire station.png • 8 Work Clothes.png • 4 Wool.png • 4 Silo.png • 12 Farm module.png • 1 Grain.png • 144 Farm module.png
Construction costs:
Maintenance:
Size: 32x22 Tiles: 542Tile.png Space Efficiency: 77%
Production (per minute): 16 Work clothes.png• 1 Grain.png
AuthorMessSource:


Heavy Weapons 01 WH TU FS

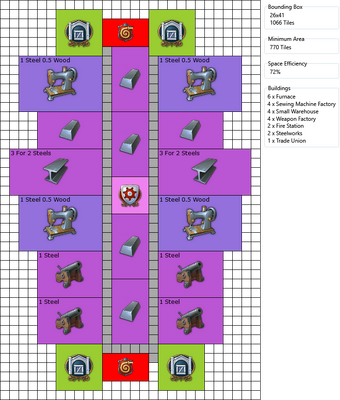

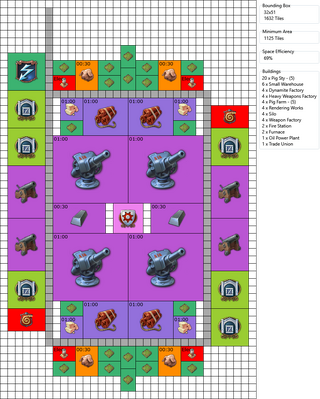

Heavy Weapons 01 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Furnace 01 WH TU FS

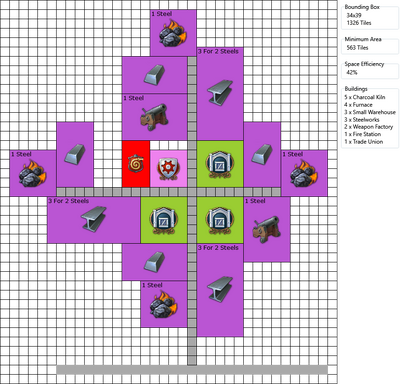

Furnace 01 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Furnace 02 WH TU FS

Furnace 02 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Artisans tier layouts

Beef

Beef 01 WH TU


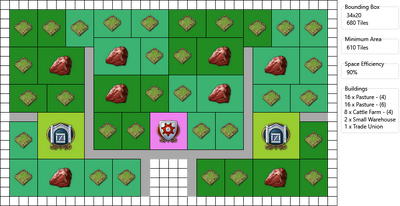

Layout for 8 cattle farms with trade union cover on all 8 90% efficient

Buildings: 2 Warehouse.png • 1 Trade Union.png • 8 Cattle Farm.png
Construction costs:
Maintenance:
Size: 20 x 34 Tiles: 680Tile.png Space Efficiency: 90%
Author:  nhavers5 • Source:


Beef 02 WH BH


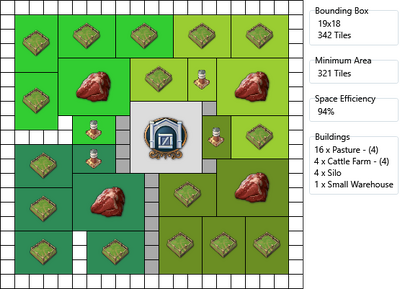

Compact cattle farms with silos.

Buildings: 1 Warehouse.png • 4 Beef.png • 4 Silo.png • 16 Farm module.png
Construction costs:
Maintenance:
Size: 19 x 18 Tiles: 321Tile.png Space Efficiency: 94%
Author:  Kikittoumou • Source:


Beef 03 WH BH

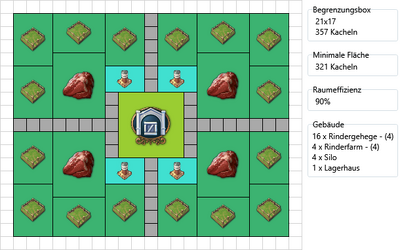

Stackable cattle farm.png

Stackable Cattle Farm

Buildings: 1 Warehouse.png • 4 Beef.png • 4 Silo.png • 16 Farm module.png
Construction costs:
Maintenance:
Size: 21 x 17 Tiles: 321Tile.png Space Efficiency: 90%
Author:  zeremonie • Source:


Canned Food

Canned Food 01 WH

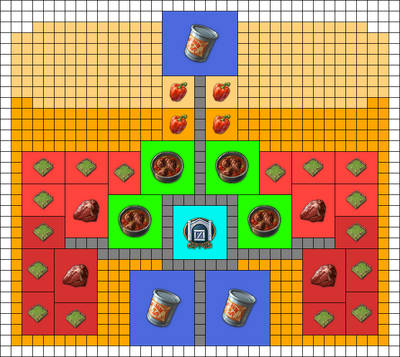

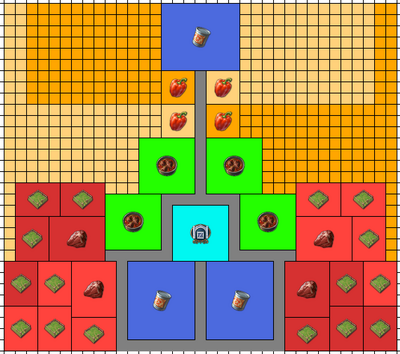

Canned food farm.png

A production chain for Canned Food. Iron Mine is Missing. Requires fully upgraded Warehouse

  • Note: This layout has some errors. The bottom two cattle farms cannot place their farthest fields and the bottom two red pepper farms have 118 modules while only 108 are allowed.
Buildings: 1 Warehouse.png • 4 Red peppers.png • 4 Beef.png • 4 Goulash.png • 3 Canned food.png • 448 Farm module.png
Construction costs:
Maintenance:
Size: 35 x 31 Tiles: 1085Tile.png Space Efficiency:
Production (per minute): 2 Canned food.png
AuthorSkipOneEBRSource:


Canned Food 02 WH

Canned Food Production 02.png

Attempted to address the issues the author of the 01 version noted. Also my first attempt at creating a layout. A production chain for Canned Food (Iron mine required outside of layout). Requires fully upgraded Warehouse.

Buildings: 1 Warehouse.png • 4 Red peppers.png • 4 Beef.png • 4 Goulash.png • 3 Canned food.png • 448 Farm module.png
Construction costs:
Maintenance:
Size: 35 x 31 Tiles: 1085Tile.png Space Efficiency:
Production (per minute): 2 Canned food.png
AuthorjnxldrSource:


Canned Food 03 WH


Production for Canned Food. Attempt to upgrade the 2 last ones. One less Cannery but I think it works pretty fine.

Buildings: 1 Warehouse.png • 4 Red peppers.png • 4 Beef.png • 4 Goulash.png • 2 Canned food.png • 448 Farm module.png
Construction costs: 74500 Credits.png • 94 Timber.png • 60 Bricks.png • 48 Steel beams.png • 48 Windows.png
Maintenance: -1220 Balance.png • -120 Workforce - farmers.png • -450 Workforce - artisans.png
Size: 39 x 26 (no roads) Tiles: 1014Tile.png Space Efficiency:
Production (per minute): 2 Canned food.png
AuthorKhypsOSSource: Twitch KhypsOS


Canned Food 04 WH FS TU


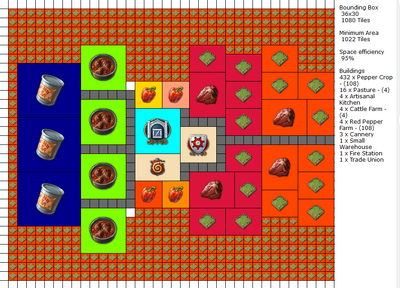

95% Space Efficiency

Production Cost is incl. WH Tier3

TU reaches everything except Canneries

Buildings: 1 Warehouse.png • 1 Fire station.png • 1 Trade Union.png • 3 Canned food.png • 4 Goulash.png • 4 Beef.png • 4 Red peppers.png
Construction costs: 117620 Credits.png • 169 Timber.png • 125 Bricks.png • 76 Steel beams.png • 76 Windows.png
Maintenance: 1375 Balance.png • 120 Workforce - farmers.png • 525 Workforce - artisans.png • 20 Influence.png
Size: 44 x 25 Tiles: 1100Tile.png Space Efficiency:
Production (per minute): 2.0 Canned food.png
AuthorDayMoe82Source:


Canned Food 05 WH TU

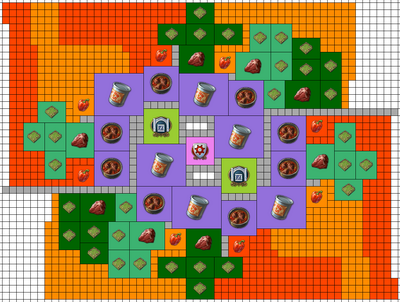

CannedFood 6 canneries.png

Both ends of the road need to be connected to the Trading Post (Harbour).

Trade Union reaches all Canneries and Goulash Kitchens.

85% Space Efficiency with current field layout - can definitely be improved.

Buildings: 1 Warehouse.png • 1 Trade Union.png • 6 Canned food.png • 8 Goulash.png • 8 Beef.png • 8 Red peppers.png
Construction costs: 60500 Credits.png • 184 Timber.png • 145 Bricks.png • 112 Steel beams.png • 112 Windows.png
Maintenance: -2650 Balance.png • 240 Workforce - farmers.png • 50 Workforce - workers.png • 1050 Workforce - artisans.png
Size: 56 x 42 Tiles: 1998Tile.png Space Efficiency: 85
Production (per minute): 4 Canned food.png
AuthorVasectomieRatéeSource:


Canned Food 06 WH TU - [Recipe Archivist]

File:Canned Food WH TU -Recipe Archivist-Fixed.png

A compact canned food production chain using the Recipe Archivist.

Buildings: 1 Trade Union.png • 2 Warehouse.png • 2 Pigs.png • 3 Canned Food.png • 4 Red Peppers.png • 4 Goulash.png
Construction costs: 95750 Credits.png • 142 Timber.png • 95 Bricks.png • 40 Steel beams.png • 40 Windows.png
Maintenance: -1710 Balance.png • -100 Workforce - farmers.png • -525 Workforce - artisans.png • -20 Influence.png
Size: 29x30 Tiles: 870Tile.png Space Efficiency: 97%
Production (per minute): 2 Canned food.png
Author:  DeckOfWonder • Source:


Canned Food 07 WH TU FS BH

Canned Food 07 WH TU FS.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Canned Food 08 WH TU FS

Canned Food 08 WH TU FS.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Canned Food 09 WH TU FS

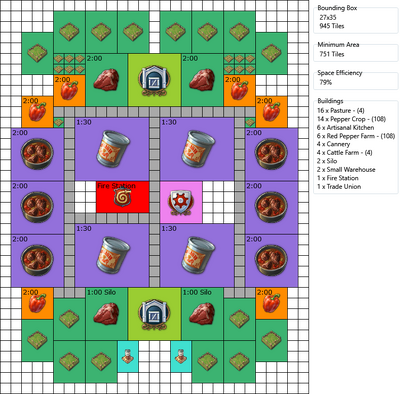

Layout St3fanNL Canned Food 2min.png

A very efficient layout for 2 canned food per minute.

Buildings: 1 Warehouse.png • 1 Trade Union.png • 1 Fire Station.png • 3 Cannery.png • 4 Red Peppers.png • 4 Beef.png • 16 Farm module.png • 4 Goulash.png
Construction costs: 107500 Credits.png • 135 Timber.png • 85 Bricks.png • 64 Steel beams.png • 64 Windows.png
Maintenance: -1495 Balance.png • -120 Workforce - farmers.png • -600 Workforce - artisans.png
Size: 35x37 Tiles: 1295Tile.png Space Efficiency: 79%
Production (per minute): 2 Canned Food.png
AuthorSt3fanNLSource: Youtube


Fur Coats

Fur Coats 01 WH TU FS BH

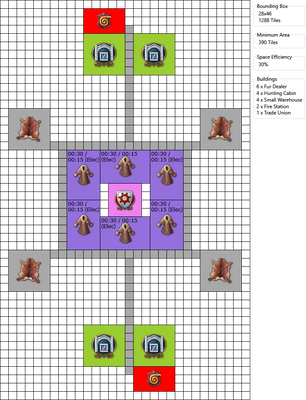

Fur 01 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Fur Coats 02 WH TU FS

Fur 02 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Fur Coats 03 WH TU FS BH

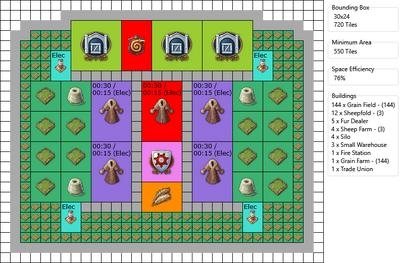

Fur Dealer 03 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Red Peppers

Red Peppers 01 WH


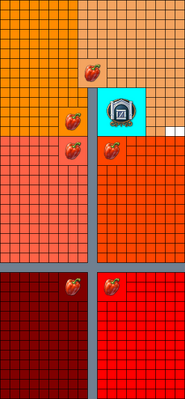

93% efficient 6 Red Pepper Farm set-up with a warehouse.

Buildings: 1 Warehouse.png • 6 Red peppers.png • 648 Farm module.png
Construction costs: 12000 Credits.png • 36 Timber.png
Maintenance: -300 Balance.png • -60 Workforce - farmers.png
Size: 19x41 Tiles: 779Tile.png Space Efficiency:
Production (per minute): 3 Red peppers.png
AuthorVoltacusSource:


Red Peppers 2 01 WH

Pepper layout.png

Easy to build module. Just drag the pepper farm closest to the WH across the WH space until the farm nodules cap out and then repeat with the other 3 farms. In the late game the WH can be upgraded and setup mirrored where one WH is replaced with a trader's union building.

Buildings: 1 Warehouse.png • 4 Red peppers.png • 648 Farm module.png
Construction costs: 12000 Credits.png • 36 Timber.png
Maintenance: -300 Balance.png • -60 Workforce - farmers.png
Size: 17 x 30 Tiles: 493Tile.png Space Efficiency: 97%
Production (per minute): 8 Red peppers.png
AuthorEntropic8Source:


Windows

Windows 01 WH TU FS

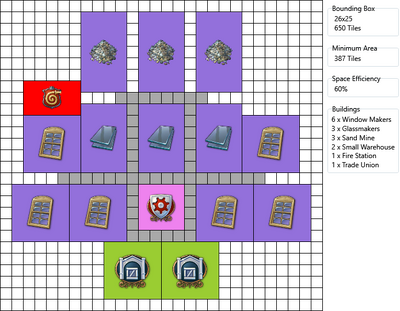

Windows 01 WH TU FS layout.png
Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Mixed

Beef and Red Pepper 01 WH

Beef and Pepper.png

83% efficient 4 Cattle Farm and 4 Red Pepper Farm setup with warehouse that produce 2 beef and red pepper per min.

Buildings: 1 Warehouse.png • 4 Beef.png • 4 Red peppers.png • 448 Farm module.png
Construction costs:
Maintenance:
Size: 23 x 35 (no roads) Tiles: 805Tile.png Space Efficiency:
Production (per minute): 2 Red peppers.png• 2 Beef.png
AuthorMr_HarieSource:


Beef and Red Pepper 02 WH

4x Pepper-Cattle 2.png

A 98% efficient combined Cattle and Red Pepper Farm layout. This will supply 4 Artisanal Kitchens.

Buildings: 1 Warehouse.png • 4 Beef.png • 4 Red peppers.png
Construction costs: 21,620 Credits.png • 58 Timber.png
Maintenance: 600 Balance.png • 120 Workforce - farmers.png
Size: 27x29 Tiles: 783Tile.png Space Efficiency:
Production (per minute): 2 Beef.png• 2 Red peppers.png
AuthorV0nMaximilianSource:


Engineers tier layouts

Light Bulbs

Light Bulb 01 WH TU FS

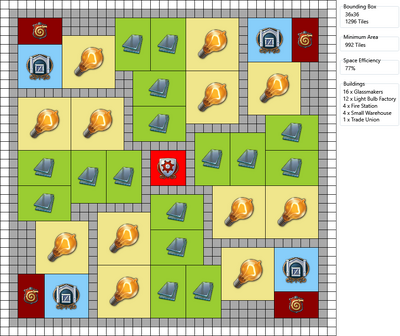

Light bulb 01.png

A layout for more than 50k investors

Buildings: 4 Warehouse.png • 4 Fire station.png • 1 Trade Union.png • 12 Light Bulb Factory.png • 16 Glassmakers.png
Construction costs:
Maintenance:
Size: 36x36 Tiles: 992Tile.png Space Efficiency: 77%
AuthorV0nMaximilianSource:


Mixed

Bicycle & Sewing 01 WH TU FS

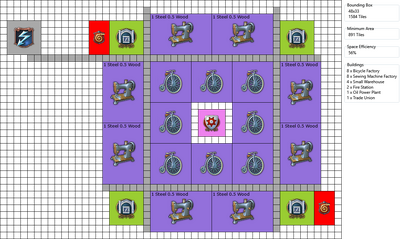

Bicycle Sewing 01 WH TU FS layout.png

Paved roads.

Buildings:
Construction costs:
Maintenance:
Size: Tiles: Space Efficiency:
AuthorfinalmakerrSource:


Investors tier layouts

Grapes

Grapes 01 WH FS

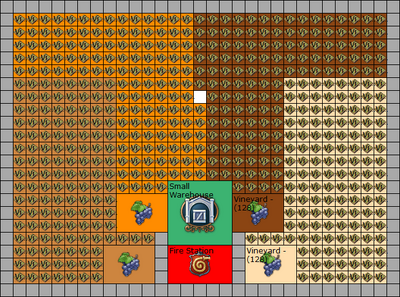

Vineyard 01.png

A 99% efficient vineyard, with a Fire Station against the drought. Produces the finest grapes in the whole old world.

Buildings: 1 Warehouse.png • 1 Fire Station.png • 4 Vineyard.png
Construction costs: 32524 Credits.png • 50 Timber.png
Maintenance: 820 Balance.png • 40 Workforce - farmers.png
Size: 29x21 Tiles: 600Tile.png Space Efficiency:
Production (per minute): 2 Grapes.png
AuthorAnnoholic1800Source:


Mixed tiers layouts

Mix - 15 Square WH

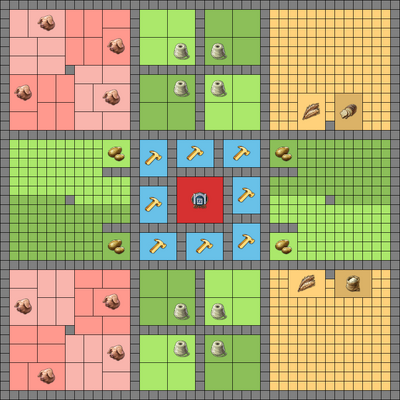

Layout Block 15.png

To make optimal use of space and routes you can build your production around a warehouse surrounded by production buildings. Production "squares" of 15x15 tiles can easily be added or moved.

Buildings: • Depends on the layout
Construction costs: • Depends on the layout
Maintenance: • Depends on the layout
Size: 43x43 Tiles: 1849Tile.png Space Efficiency:
AuthorKartographerSource:


New World

Jornaleros tier layouts

Caoutchouc

Caoutchouc 01 WH

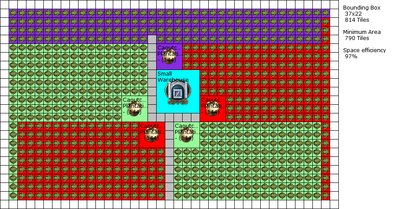

Caoutchouc farm.png

A full production chain for Caoutchouc

Buildings: 1 Warehouse.png • 4 Caoutchouc.png • 576 Farm module.png
Construction costs:
Maintenance:
Size: 39 x 37 Tiles: 693Tile.png Space Efficiency:
Production (per minute): 4 Caoutchouc.png
AuthorSkipOneEBRSource:


Caoutchouc 02 WH

Caoutchouc farm2.png

A full production chain for Caoutchouc

Buildings: 1 Warehouse.png • 5 Caoutchouc.png • 720 Farm module.png
Construction costs: 13000 Credits.png • 50 Timber.png
Maintenance: 135 Balance.png • 50 Workforce - jornaleros.png
Size: 37 x 22 Tiles: 790Tile.png Space Efficiency:
Production (per minute): 5 Caoutchouc.png
AuthorCelebaneSource:


Caoutchouc 03 WH FS

Caoutchouc farm03.png

A 97% efficient full production chain for Caoutchouc, including a fire station.

Buildings: 1 Warehouse.png • 4 Caoutchouc.png • 576 Farm module.png
Construction costs: 39800 Credits.png • 54 Timber.png
Maintenance: 135 Balance.png • 40 Workforce - jornaleros.png
Size: 45 x 15 Tiles: 675Tile.png Space Efficiency:
Production (per minute): 4 Caoutchouc.png
AuthorAnnoholic1800Source:


Caoutchouc 04 WH TU BH

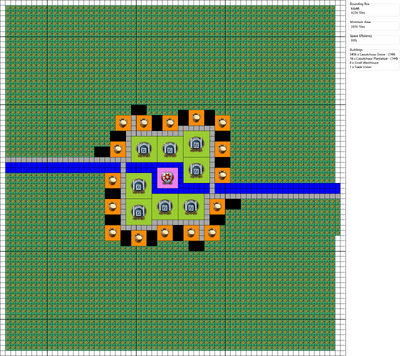

Caoutchouc 04 WH TU BH.png

For massive Caoutchouc production. +50% fields from BH. Railroad pass-through allows placing fuel stations and oil refineries before/after the block. 8 Grand Warehouses (6 ramps each) can sustain up to 550% production for each plantation. Can be used for all plantations with 1 ton/min base output, or adapted while observing "produtcion rate/warehouses" proportion.

Buildings: 1 Trade Union.png • 8 Warehouse.png • 16 Caoutchouc.png • 16 tractor barns
Construction costs: 126836 Credits.png • 233 Timber.png • 5 Bricks.png • 320 Steel beams.png • 160 Steam Motors
Maintenance: 530 Balance.png • 80 Workforce - jornaleros.png • 20 Influence.png
Size: 64x66 Tiles: 3816Tile.png Space Efficiency: 90%
Production (per minute): 16 Caoutchouc.png• -3,2 Oil.png
AuthorAcidelloSource:


Cotton Fabric

Cotton Fabric 01 WH

Cotton fabric farmPNG.png

A full production chain for Cotton Fabric

Buildings: 1 Warehouse.png • 8 Cotton.png • 4 Cotton fabric.png • 1152 Farm module.png
Construction costs:
Maintenance:
Size: 39 x 37 Tiles: 1443Tile.png Space Efficiency:
Production (per minute): 8 Cotton fabric.png
AuthorSkipOneEBRSource:


Cotton Fabric 02 WH


A full production chain for Cotton Fabric

Buildings: 1 Warehouse.png • 2 Cotton.png • 1 Cotton fabric.png • 288 Farm module.png
Construction costs: 2000 Credits.png • 28 Timber.png
Maintenance: -30 Balance.png • -30 Workforce - jornaleros.png
Size: 27 x 17 (bottom road only) Tiles: 459Tile.png Space Efficiency:
Production (per minute): 2 Cotton fabric.png
AuthorKhypsOSSource: Twitch KhypsOS


Fried Plantains

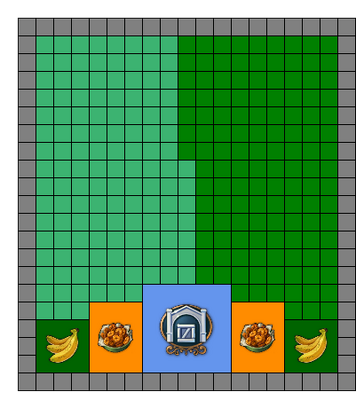

Fried Plantains 01 WH
